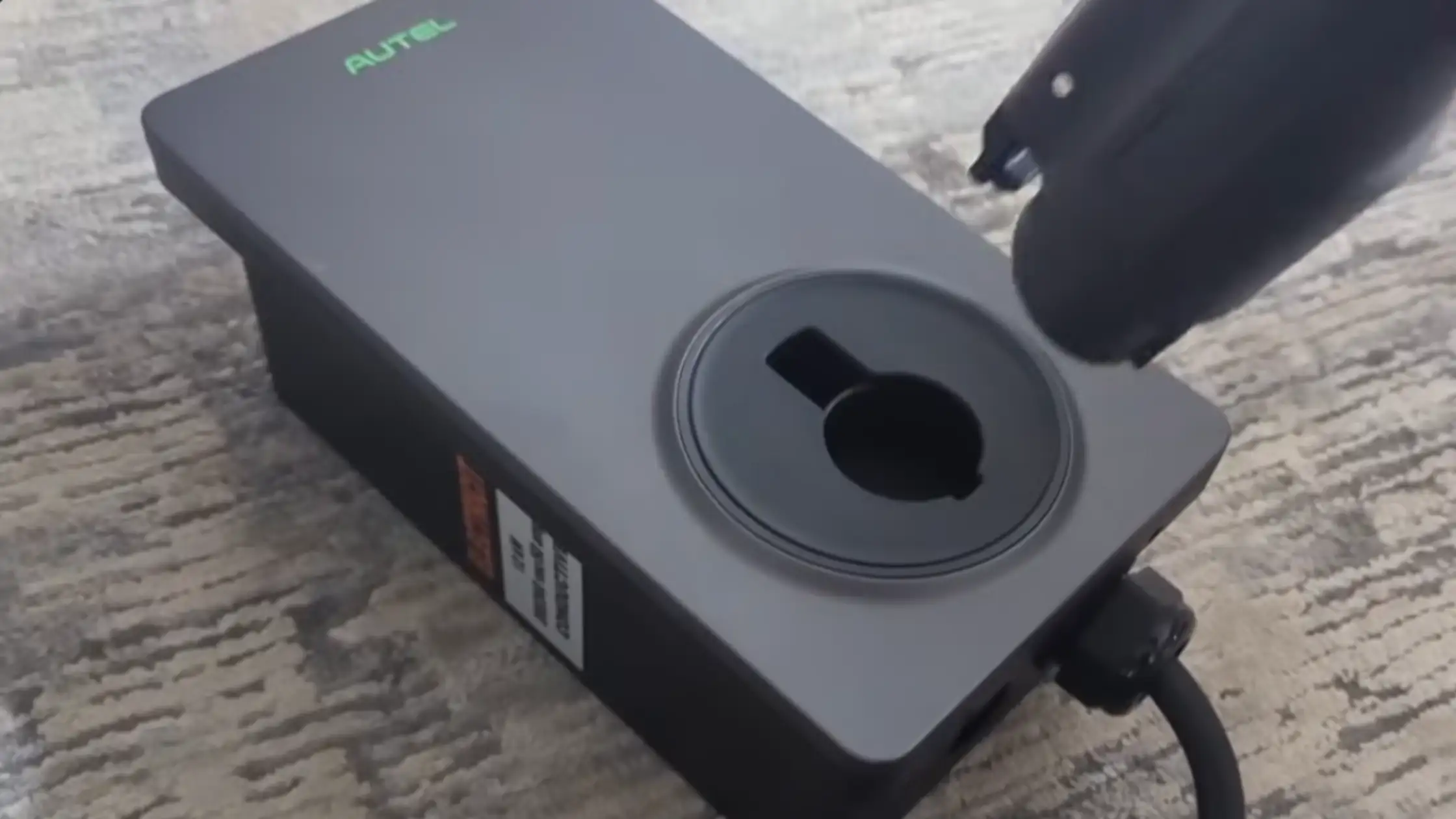

Autel AC Lite EV Charger Review
The Autel Home Level 2 EV Charger (Autel AC Lite EV Charger) delivers up to 50 Amps of 240V charging, adding 37 miles per hour of charge. This hardwired, Wi-Fi, and Bluetooth-enabled station features a 25-foot flexible cable, NEMA Type 4 weatherproof design, and smart app control for optimized charging. CSA-certified, it ensures safety and reliability.
The Autel AC Lite EV Charger offers a reliable and fast charging solution for electric vehicle owners. With a maximum output of 50A (12kW), it delivers up to 37 miles of range per charging hour. This makes it ideal for users who need quick top-ups. The 25-foot cable remains flexible in cold temperatures, ensuring it works well in any weather, including extreme cold (-40℃).
The charger is built to last, featuring a NEMA Type 4 rating, making it resistant to rain, snow, and hail. It’s also CSA-certified and includes overcurrent, overvoltage, and overtemperature protection. These features help ensure safety and durability over time. The installation process is simple, and electricians can set it up easily, saving you time and effort.
Smart features come in the form of the Autel Charge app, which allows you to control charging times, schedule sessions, and optimize power usage to reduce costs. The app connects through Bluetooth, Wi-Fi, and Ethernet, ensuring that firmware updates are always up to date.
One downside is the small door for wire connections, which can be difficult to work with when installing larger cables like #6. Some users have also reported that the cable can be stiff, though its thickness provides durability.
The Autel AC Lite EV Charger provides excellent value with its high charging speed, safety features, and ease of use. It’s a great choice for those looking to enhance their EV charging experience at home.
50A Autel AC Lite EV Charger Hardwired Installation
The default installation of the Autel AC Lite 50A EV Charger involves a hardwired connection using a 70A double pole circuit breaker. The 50A Autel AC Lite 50A EV Charger wiring diagram highlights the setup within an electrical panel, where two hot wires (L1 and L2) and a neutral wire (N) are connected to the breaker. The ground wire (G) is secured to the ground busbar in the panel, which connects to an external ground rod for safety.
For proper installation, the L1 and L2 wires should be 4 AWG, while the ground wire can range from 4 to 6 AWG, all routed through a 1 to 1 1/4-inch conduit as shown in the 50A Autel AC Lite 50A EV Charger wiring diagram above. The system delivers a powerful 12kW output, ensuring efficient charging for your EV.
The Autel AC Lite EV Charger is equipped with a rotary selector switch that includes a 0 position, which is not in use. This switch allows users to choose from six active amperage settings—16A, 24A, 32A, 40A, 48A, or 50A—based on their electrical system’s capacity. By selecting the appropriate amperage, users can ensure optimal charging performance and efficiency.
The table below provides detailed information on each selector position, including the corresponding amperage, estimated range per hour, maximum output power, and required circuit breaker rating.
| Autel AC Lite Selector Position | Amperage Setting | Estimated Range Per Hour | Maximum Output Power | Circuit Breaker Rating |
|---|---|---|---|---|
| 1 | 16A | 12 mi / 19 km | 3.8 kW | 20A |
| 2 | 24A | 18 mi / 29 km | 5.8 kW | 30A |
| 3 | 32A | 25 mi / 40 km | 7.7 kW | 40A |
| 4 | 40A | 30 mi / 48 km | 9.6 kW | 50A |
| 5 | 48A | 36 mi / 58 km | 11.5 kW | 60A |
| 6 | 50A | 37 mi / 60 km | 12 kW | 70A |
Autel AC Lite EV Charger Lock Box
We tested multiple EV charger lockboxes with our Autel AC Lite EV Charger. These lockboxes fit the Autel AC Lite EV Charger well. They secure the charger and protect the cable from theft and weather. Simple to install, they offer consistent protection for both the charger and cable.
