Aimiler 32 Amp Level 2 EV Charger Review
The Aimiler 32 Amp Level 2 EV Charger delivers 220V-240V power with a NEMA 14-50 plug and a 25ft cable, offering versatile indoor/outdoor charging. ETL listed and WiFi-enabled, it features a delay timer for customized charging schedules. Compatible with SAE J1772 EVs, it ensures fast, efficient, and reliable performance.
The Aimiler 32 Amp Level 2 EV Charger stands out as a dependable and portable Level 2 EV charger. It’s available in two variants: one for J1772-compatible vehicles and another equipped with a NACS plug, designed for Tesla models S, X, 3, and Y, as well as other EVs using the North American Charging Standard (NACS). This plug-and-play EV charger connects to a standard NEMA 14-50 outlet, a common household feature, making installation straightforward and hassle-free.
With adjustable amperage settings of 16A, 24A, and 32A, the Aimiler EV charger offers flexibility to match your home’s electrical load and panel capacity. When connected to a 32A circuit protected by a dedicated 40-amp breaker, it delivers up to 7.68 kW, translating to charging speeds roughly six times faster than a standard Level 1 charger. You can expect to add up to 30 miles of range per hour of charging, making it ideal for quick top-offs or overnight charging sessions.
The 25-foot cable is a practical touch, offering plenty of reach to accommodate various parking configurations. The Aimiler EV charger also incorporates critical safety features, including built-in CCID20 leakage protection, eliminating the need for an additional GFCI breaker. This ensures peace of mind by automatically shutting off the charger in the event of an EV charger ground fault or current leakage. Additionally, the unit complies with rigorous safety standards such as UL2231-1/-2, further reinforcing its reliability.
In terms of design, the Aimiler EV Level 2 charger has taken cues from other portable EV chargers like the Bokman 16 Amp Wall Charger, Skysword II, BougeRV, and Lectron. However, its curved edges and compact form factor make it easier to store in your EV’s trunk or secure on its wall-mounted holder. The included LED display is crisp and intuitive, showing key information like amperage, voltage, and charging status. Simple touch buttons enable effortless adjustments, adding to its ease of use.
For tech-savvy users, the Aimiler EV charger Level 2 charger integrates with the third-party “Smart Life App” for smart EV charging control and management, while the app’s functionality is somewhat basic, it allows users to monitor power consumption, set charging schedules, and review usage history. The scheduling feature is especially useful for taking advantage of off-peak electricity rates, helping to lower energy costs.
Durability is another highlight. The Aimiler EV charger features a NEMA Type 4-rated enclosure, military-grade charging cable, drop-resistant plug, and a rugged, waterproof shell. The included wall-mounted holder and cable organizer ensure everything stays neat and accessible. However, while the unit is designed to withstand daily use, prolonged exposure to direct sunlight or heavy rain is best avoided to maintain its longevity.
The Aimiler 32 Amp Level 2 EV Charger strikes a solid balance between portability, performance, and safety. Its thoughtful design, robust safety features, and affordable pricing make it a reliable choice for everyday EV charging. Whether you’re a seasoned EV owner or new to the world of electric vehicles, this charger is well-equipped to meet your needs.
Aimiler EV Charger Installation Guide
The Aimiler EV Charger is designed for easy installation and compatibility with a NEMA 14-50 plug, commonly found in households. Its adjustable amperage settings allow you to tailor the charging output to your home’s electrical capacity and your EV’s charging needs. To ensure safe and efficient operation, follow these guidelines for selecting the appropriate circuit setup based on your desired charging speed:
32A Aimiler EV Charger Installation Guide
This detailed 32A Aimiler EV charger wiring diagram provides a step-by-step visual guide for wiring your Aimiler EV charger circuit to a NEMA 14-50 outlet, highlighting the necessary components and wiring specifications.
- Circuit Requirement: 40A circuit with a dedicated 40A circuit breaker.
- Output: Up to 7.7 kW.
- Charging Speed: Adds approximately 25 miles (40 km) of range per hour of charging.
Wiring diagram for a NEMA 14-50 outlet installation, designed for the Aimiler 32 Amp Level 2 EV Charger, illustrating the connections to the electrical panel and outlet.
24A Aimiler EV Charger Installation Guide
This detailed 24A Aimiler EV charger wiring diagram provides clear instructions on how to wire the charger to your home’s electrical panel, with specific guidance for the 24A configuration.
- Circuit Requirement: 30A circuit with a dedicated 30A circuit breaker.
- Output: Up to 5.8 kW.
- Charging Speed: Adds approximately 18 miles (29 km) of range per hour of charging.
Wiring diagram for a 24A Aimiler EV Charger installation, featuring the main breaker, 30A double pole breaker, and connections to a NEMA 14-50R outlet.
16A Aimiler EV Charger Installation Guide
The following 16A Aimiler EV charger wiring diagram illustrates the necessary setup for a 16A Aimiler EV Charger
- Circuit Requirement: 20A circuit with a dedicated 20A circuit breaker.
- Output: Up to 3.8 kW.
- Charging Speed: Adds approximately 12 miles (19 km) of range per hour of charging.
Wiring diagram for a 16A Aimiler EV Charger installation, featuring the main breaker, 20A double pole breaker, and connections to a NEMA 14-50R outlet.
Surge Protection for Aimiler 32 AMP EV Charger Installations
When installing an Aimiler EV charger, surge protection is a critical safety measure. You have two main options: installing whole-house surge protection or adding a dedicated surge protection device (SPD) to the Aimiler EV charger circuit.
See also:
- EV Charger Surge Protection Guide – for installation tips, NEC rules, and SPD types
- EV Charger Surge Protection Devices – for a curated list of compatible EV charger surge protectors
Whole-house Surge Protection for Aimiler 32 AMP EV Charger Installations
Whole-house surge protection is highly recommended, especially if your main electrical panel does not already include one. This approach safeguards not only the Aimiler EV charger but also all other circuits and appliances connected to the panel. It’s a more cost-effective solution compared to installing separate SPDs for individual devices.

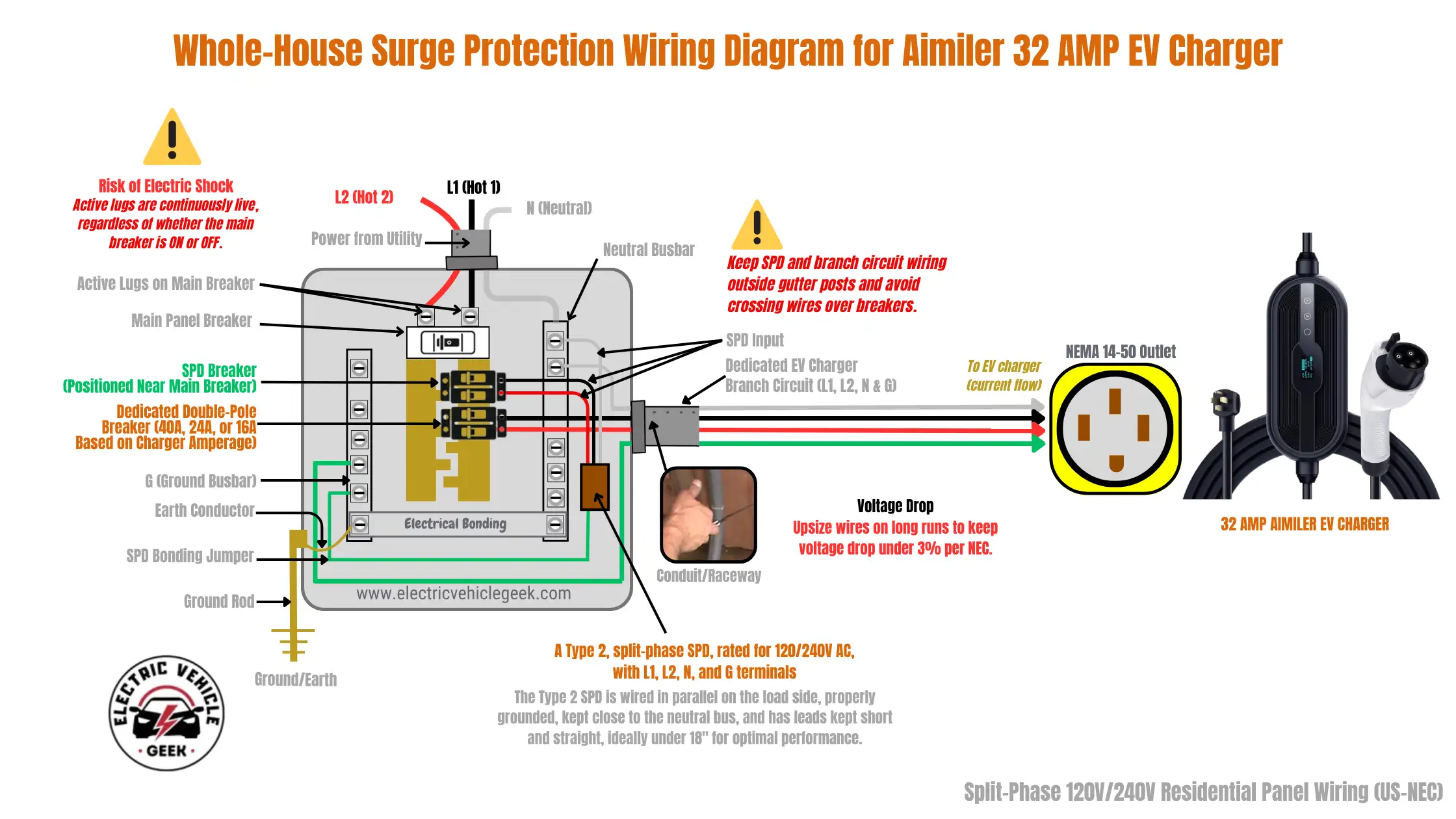

As illustrated in the EV charger whole-house surge protection wiring diagram below, the SPD is typically a 4-wire (L1, L2, N, and Ground) SPD device installed in parallel near the main panel. It connects through a dedicated double-pole circuit breaker that protects both the SPD itself and downstream equipment.
In this configuration, any device powered through the electrical panel, including your Aimiler EV charger, benefits from surge protection against voltage spikes caused by lightning strikes, grid disturbances, or internal surges.
Dedicated Surge Protection for 32A Aimiler EV Charger Installations
Although we recommend whole-house surge protection for most residential 32A Aimiler EV charger installations, some Aimiler EV charger setups may require a dedicated surge protection device (SPD).
This is especially true in the following situations:
- When the 32A Aimiler EV charger is installed on a detached garage or subpanel that is not covered by the main panel’s SPD
- If the main panel lacks space for a whole-house SPD or a dedicated SPD breaker
- In regions with frequent grid disturbances or lightning activity, where layered protection is advisable
- For high-value or mission-critical installations, where the 32A Aimiler EV charger is in constant use or used commercially

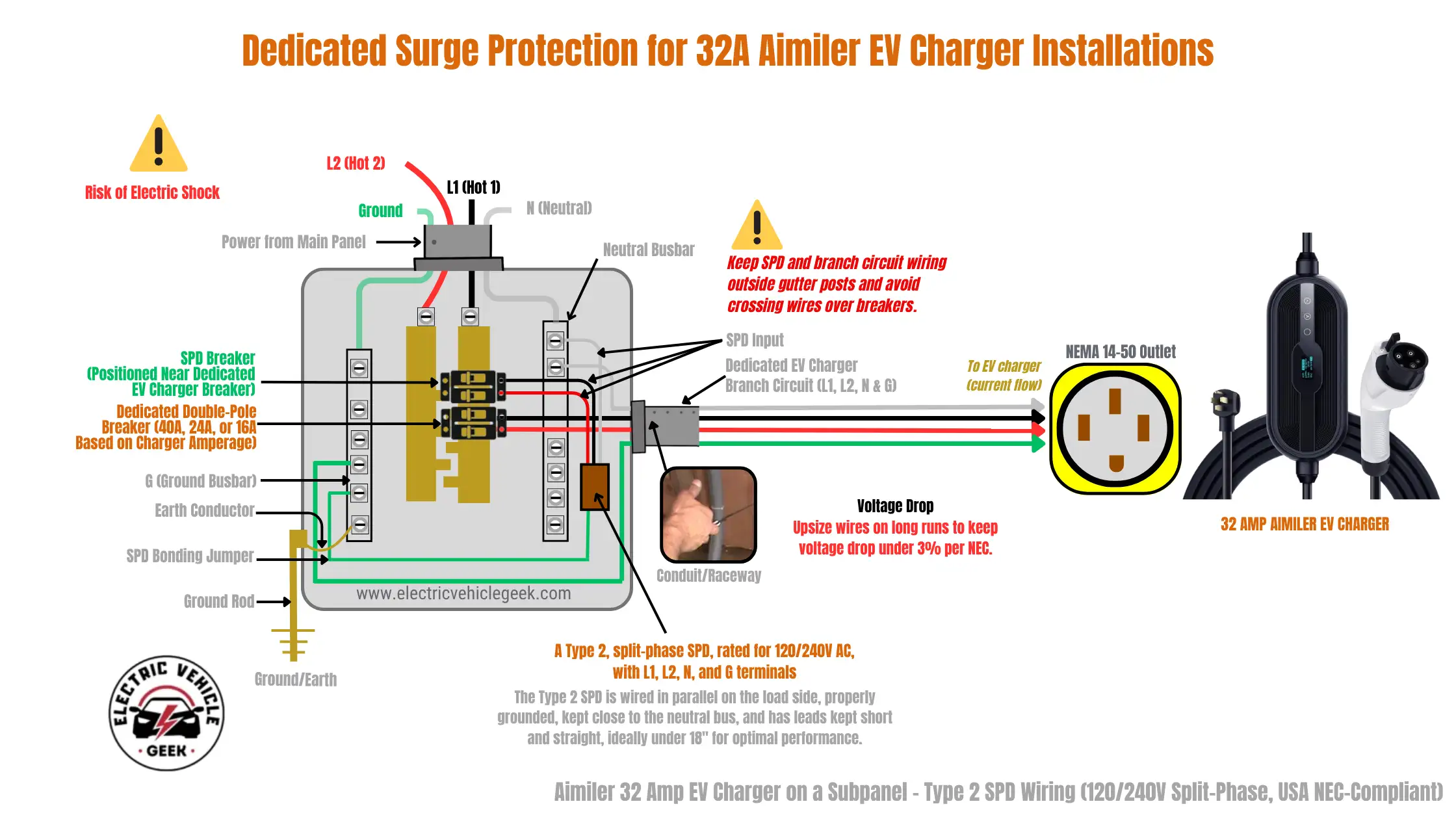

In such cases, a dedicated SPD, wired in parallel on the Aimiler charger’s 120/240V circuit, provides localized protection. It isolates the charger from voltage spikes originating either externally (from the grid) or internally (from large motor loads or switching devices). The SPD should be a 4-wire device (L1, L2, N, G), installed with short leads and protected by its breaker or in coordination with the charger’s breaker.
The SPD is installed in parallel with the double-pole breaker supplying the Aimiler charger. It should be a Type 2, 4-wire SPD (L1, L2, Neutral, and Ground) rated for 120/240V split-phase systems. The unit should be mounted as close as possible to the dedicated EV charger circuit breaker, with short, straight leads, ideally under 18 inches, to minimize resistance and ensure fast response during a surge event.
In this configuration, only the Aimiler EV charger benefits from surge protection. While it doesn’t cover the entire home, it’s a reliable option for safeguarding the charger’s sensitive internal components from grid disturbances, lightning strikes, or switching surges.
Compatible NEMA 14-50 Outlets
Ensure efficient charging with NEC-certified NEMA 14-50 outlets. They support 40A continuous loads on 50A breakers and are designed for 6 AWG wiring.
Aimiler EV Charger Compatible Outlet Covers
In our testing of the Aimiler 32 Amp Level 2 EV Charger, we also purchased, installed, tested, and rated compatible EV charger outlet covers. These covers block live components, protecting users from accidents, tampering, and theft. They also offer energy savings, enhance the charger’s look, and provide overload indicators for safety.
