Fluke FEV150 EV Charging Station Analyzer
Fluke FEV150 is an all-in-one EVSE analyzer with PE, GFCI, CP/PP tests & TruTest reporting, built for pro installers needing fast, accurate diagnostics.
This is Electric Vehicle Geek’s Fluke FEV150 EV Charging Station Analyzer review.
I’ve been testing EV chargers and diagnostic tools for years, both for home and commercial EV charger installations. When Fluke released the FEV150, an all-in-one analyzer for AC EVSE, I knew I had to get one for our EV charger test bench and put it through its paces.
I tested the FEV150 on multiple chargers to evaluate its performance in real-world troubleshooting and maintenance scenarios. In some cases, where the analyzer doesn’t display certain values directly, like an EV charger’s kW output, we used the FEV150 to measure the necessary components (voltage and current) and then calculated the power manually using the formula P = V × I.
Note: Like any EV charger diagnostic tool, the FEV150 is only as good as the technician using it. My experience reflects real-world testing and usage, not lab-perfect conditions.
Summary: The FEV150 is a must-have for EVSE installers and maintenance pros. It consolidates protective earth (PE) safety checks, nominal voltage and frequency measurements, GFCI trip and advanced fault testing, Control Pilot (CP) simulation with waveform analysis, Proximity Pilot (PP) checks, and fault simulations into one portable unit.
In this review, I’ll walk you through my experience with the analyzer, its unique features, benefits, and where it fits best.
Overview & Why You Should Consider It
The FEV150 is built to test the safety and functionality of AC EVSE (Type 1 / J1772 or NACS/Tesla EV Chargers). Instead of lugging around multiple instruments, this tool consolidates them into one device.
It performs:
- PE pre-tests for dangerous voltages
- Nominal voltage & frequency checks
- GFCI trip tests (basic & advanced)
- Control Pilot (CP) signal simulation and waveform analysis
- Proximity pilot (PP) testing & fault simulations
Fluke engineered the FEV150 for maximum reliability and full compliance with IEC-61851 and IEC-60364 standards, critical for technicians who require an integrated EV charging station testing portfolio for electricians who install or perform maintenance of EV Charging stations, including Level 1 EV chargers, Level 2 EV chargers, and commercial EV chargers. The FEV150 portfolio troubleshoots and performs critical maintenance testing of AC EVSEs. Works/acts as a test and measurement tool without the need for multimeters or scope meters. It’s also the only tool in its class that supports every AC EVSE connector, ensuring universal compatibility.
Testing & Usage
I use the FEV150 in my EV charger test bench and during EV charger installations mainly for:
- Pre-installation safety checks
- Post-installation commissioning
- Troubleshooting a suspected GFCI nuisance trip
Using the FEV150 saves me time thanks to on-screen guidance and Bluetooth pairing with TruTest. Compared to my older process (using multiple dedicated EV charger diagnostic instruments), I easily cut my workflow time in half.
My Experience with the FEV150

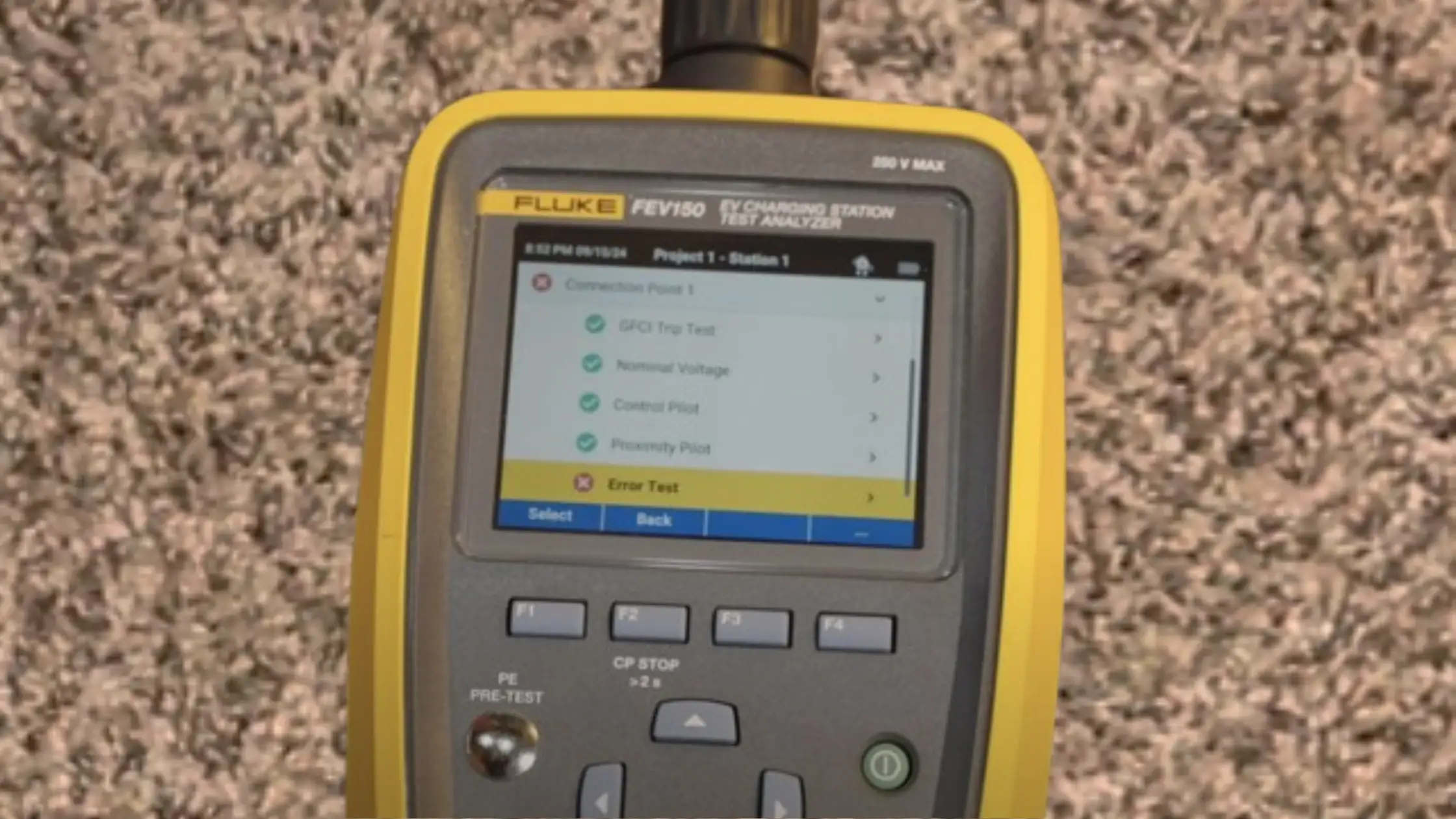

The color LCD and guided test menus are a game-changer. Even when running a CP waveform analysis, the pass/fail indicators were immediate and clear.
The PE pre-test is something I always run before energizing an EVSE. With the FEV150, it’s quick and gives peace of mind that there’s no hazardous voltage floating around.

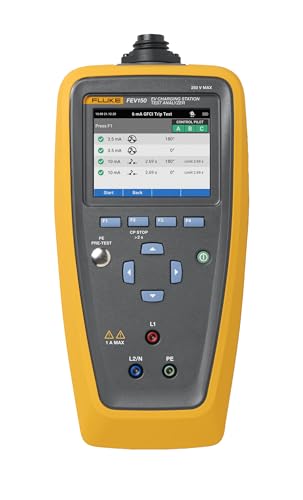

GFCI tests worked flawlessly, letting me simulate both 6mA DC fault conditions and standard 30mA AC trips. In one case, it confirmed a faulty EVSE board that was tripping below spec, exactly the kind of diagnostic insight I need in the field.
The TruTest software sealed the deal for me. Its automatic report generation with time-stamped results reduces paperwork for my EV charger test logs while improving client reporting and documentation, an essential part of our EV Charger Consultation services.
Full Review
- Build & Design (A): Rugged, portable, and with an IP40 rating. The TY1 adapter locks securely into J1772 ports.
- Display & Interface (A): Bright, color LCD with easy-to-follow instructions. Even field techs new to EVSE testing will appreciate the guided workflow.
- Functionality (A+): PE, CP, PP, GFCI, and fault simulations all in one box. No more juggling multiple testers.
- Software Integration (A): TruTest Bluetooth sync is fantastic for reporting and tracking site history over time.
- Value (B+): It’s pricey, and while worth it for professionals, it may be overkill for occasional DIY testers.
Customer Feedback
Early adopters and EVSE technicians consistently praise the FEV150 for its accuracy, portability, and ability to replace multiple tools. While some consider its premium price (ranging from about $2,500 for the base package to $3,500 for the premium) high, most agree it quickly pays for itself through time savings, expanded service capabilities, and professional-grade reports.
Who’s the FEV150 for?
- EVSE Installers & Commissioning Teams: Absolutely.
- Commercial Maintenance Crews: Yes, especially for fleet depots and public stations.
- DIY Homeowners: Probably not, it’s overkill unless you handle multiple chargers.
Want Tesla connector support? Get the TY1/TSL versions.
Need reporting? Pair it with TruTest Software License.
Fluke FEV150 EV Charging Station Analyzer Comparison
Choosing the right FEV150 package depends on how you plan to use it in the field. After installing, testing, and commissioning dozens of EVSE units with the FEV150, I’ve found that the real differences between packages go beyond what’s in the box; they impact your efficiency on-site and how well you can document results for clients.
For example, Tesla adapters (TSL) are critical if you regularly service Tesla Wall Connectors, while TruTest software licenses save hours of reporting time for fleet or multi-site work. The PRO kits are worth the premium if you want out-of-the-box reporting and less paperwork later.
Here’s how each option compares:
FEV150/BASIC
Best for budget-conscious J1772 EV charger technicians who have their own reporting software. It’s a barebones kit, good enough for occasional troubleshooting or small-scale work, but you’ll spend more time calculating results manually since there’s no software license included.
FEV150/TY1
Ideal for standard J1772 installs and residential commissioning. A great entry-level kit for Type 1 chargers. You can always add TruTest later if automated reporting and documentation become essential as your projects grow.
FEV150/TY1 PRO
Designed for J1772 EV charger installers doing high-volume residential or commercial work who need reporting automation. The included TruTest license saves hours on documentation, and Bluetooth integration makes client handoff seamless.
FEV150/TY1/TSL
Perfect for shops servicing both J1772 and Tesla EV chargers. It includes Tesla support out of the box. Choose this if you don’t need TruTest yet but want the flexibility to work with mixed-connector fleets without carrying extra adapters.
FEV150/TY1/TSL PRO
The most complete kit for full-service contractors handling both Tesla and J1772 EV chargers with automated reporting. It’s the best choice if you regularly deal with warranty documentation, fleet clients, or municipal contracts where time-stamped reports are required.
FEV150/TY1/FPC
Includes the FEV-CON-TY1 (Type 1 – J1772 connector) and is ideal for teams that need warranty coverage and access to loaner units to avoid downtime. The Premium Care package adds extra peace of mind for professionals who rely on the analyzer daily and can’t afford project delays caused by repairs or service interruptions.
Pro Tip from the Field
- Tesla Support Matters More Than You Think: Even if you mainly handle J1772, more homeowners have Teslas than ever. Getting the TSL version upfront avoids costly downtime or adapter swaps later.
- TruTest Pays for Itself: If you’re still manually writing reports, you’re losing billable hours. PRO kits with TruTest integration are a game-changer for large projects or repeat fleet work.
Basic vs. PRO: BASIC kits are fine for DIY or small contractors, but if you’re serious about scaling EVSE installs, PRO packages with software support are the smart play.
Our Verdict
The Fluke FEV150 EV Charging Station Analyzer is an outstanding tool for anyone serious about EVSE safety and performance diagnostics. It combines accuracy, portability, and reporting into one professional-grade package.
Should you buy it?
- Yes, if you’re a certified EV charger installer or a licensed electrician who gets lots of EV charger installations, inspections, and maintenance jobs, this will elevate your workflow.
- No, if you just want to occasionally check your home charger, a simpler, cheaper tester is enough.
Fluke’s legendary durability and support, plus TruTest integration, make it one of the best EVSE diagnostic solutions on the market today.
Last update on 2025-08-29 / Affiliate links / Images from Amazon Product Advertising API
The Fluke FEV150 earns 9.4 expert score for its all-in-one EVSE testing capabilities, TruTest software integration, and rugged design. Ideal for professional installers, it saves time with guided workflows and accurate diagnostics. Premium pricing, but unmatched for reliability, reporting, and field performance. A top choice for serious EVSE professionals.- All-in-one EVSE safety & performance testing
- Excellent TruTest software integration for reporting
- Portable, rugged design with Bluetooth connectivity
- Clear color display with easy pass/fail visuals
- Premium price
- Not intended for residential end-users, designed for technicians
