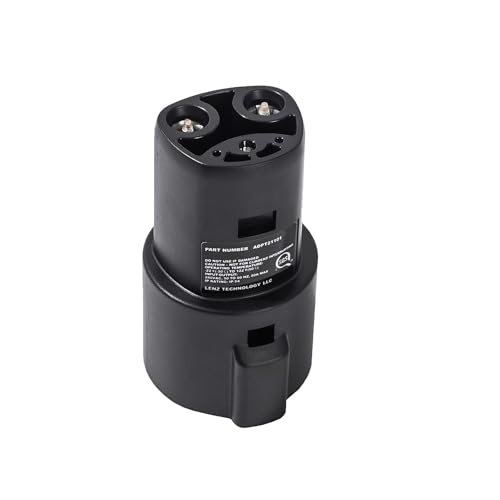

LENZ J1772 to Tesla Adapter Review

Add to compare
9
Expert ScoreRead review

The LENZ J1772 to Tesla Adapter features a secure, precision fit that ensures better pin contact, preventing arcing, voltage drops, and wear over time.

The LENZ J1772 to Tesla adapter is one of the best J1772 to Tesla adapters designed to give Tesla owners safe, fast, and reliable access to thousands of public EV charging networks that offer SAE J1772 AC EV chargers such as ChargePoint, EVgo, Electrify America, Blink Charging, FLO, EV Connect, AmpUp, Volta Charging, Shell Recharge, and Francis Energy.

You can also use the LENZ J1772-to-Tesla Adapter with any home J1772 EV charger, giving you greater flexibility and convenience without the high cost of installing a dedicated NACS charger. By expanding your charging options, the LENZ J1772 to Tesla adapter helps reduce EV charging range anxiety, especially on long trips or in areas with limited Supercharger access.

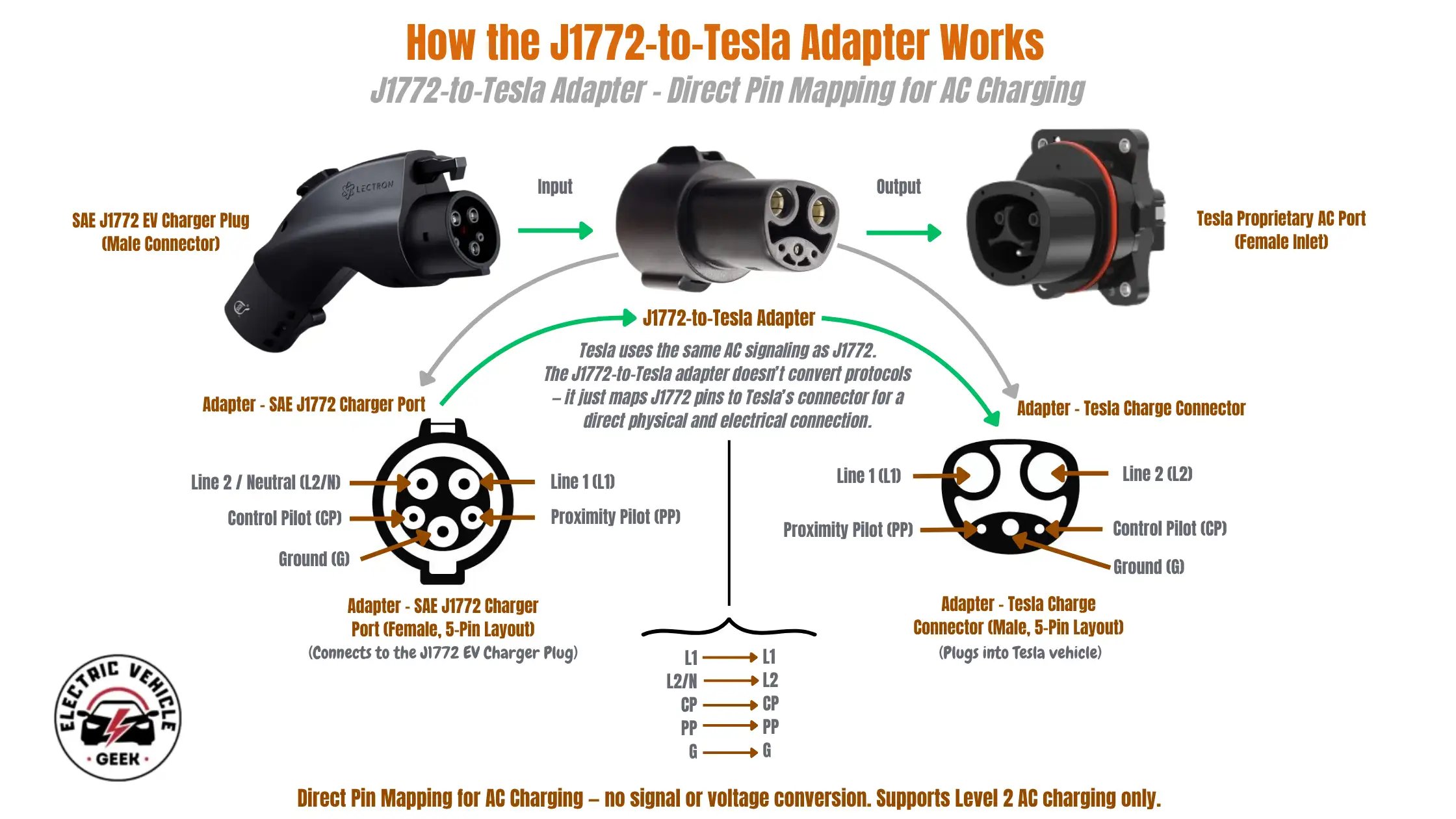

You can also use the LENZ J1772 to Tesla Adapter with a home J1772 EV charger, making Tesla charging more flexible and convenient, at a lower cost than installing a dedicated Tesla charger.An illustrative diagram titled "How the J1772-to-Tesla Adapter Works" with the subtitle "J1772-to-Tesla Adapter - Direct Pin Mapping for AC Charging." The diagram illustrates the connection flow from left to right. On the left is an "SAE J1772 EV Charger Plug (Male Connector)". An arrow points to the "J1772-to-Tesla Adapter" in the center, which accepts the J1772 plug as input. Another arrow points from the adapter's output to the "Tesla Proprietary AC Port (Female Inlet)" on the right. Below the images of the plugs and adapters, there are two circular pinout diagrams connected by a mapping list. A central text box explains the adapter's function: "Tesla uses the same AC signaling as J1772. The J1772-to-Tesla adapter doesn’t convert protocols – it just maps J1772 pins to Tesla’s connector for a direct physical and electrical connection." The left pinout diagram is for the "Adapter - SAE J1772 Charger Port (Female, 5-Pin Layout)". Its pins are labeled: Line 1 (L1) Line 2 / Neutral (L2/N) Control Pilot (CP) Proximity Pilot (PP) Ground (G) The right pinout diagram is for the "Adapter - Tesla Charge Connector (Male, 5-Pin Layout)". Its pins are labeled: Line 1 (L1) Line 2 (L2) Control Pilot (CP) Proximity Pilot (PP) Ground (G) Between the diagrams, a list shows the direct pin mapping: L1 → L1 L2/N → L2 CP → CP PP → PP G → G At the bottom, the image concludes: "Direct Pin Mapping for AC Charging – no signal or voltage conversion. Supports Level 2 AC charging only."

Purpose-built for Tesla vehicles, including the Model 3, Model Y, Model S, Model X, and Cybertruck, the LENZ J1772-to-Tesla Adapter provides a precision-engineered fit with zero wiggle or strain at the charging port. This tight, secure connection reduces common J1772-to-Tesla adapter issues such as inconsistent electrical contact, EV charging voltage drops, loose connections, and electrical arcing. Rated for operation between -22°F and 122°F, the LENZ adapter is engineered for reliable all-season performance.

Rated for up to 80 Amps at 240V AC, the LENZ adapter enables Level 1 EV charging and high-amperage continuous loads for Level 2 EV charging. It’s made from heat-resistant PC material and includes silver-plated copper alloy pins for enhanced conductivity and durability. It’s also IP54-rated for outdoor use and fully tested to meet UL 2251 and CSA C22.2 No. 282-17 standards, as certified by SGS.

Unlike more budget-friendly competitors like the Lectron J1772-to-Tesla adapter, which includes only a 1-year warranty, the LENZ J1772-to-Tesla Adapter stands out with a robust 2-year manufacturer’s warranty, double the coverage that offers quality assurance. Its premium build quality is matched by thoughtful extras like a protective storage case, making it a smarter long-term investment for Tesla owners who value a secure fit, extended product support, and accessory durability.

9Expert Score
We used the LENZ J1772 to Tesla Adapter for high amperage hardwired Level 2 EV charger. Its premium fit and finish stood out, offering smooth, secure contact with no overheating on quick high amperage top ups. The silver-plated pins and tight tolerance gave us confidence in long-term durability. The included case made daily carry and storage super convenient.
Features
9
Real World Usage
9
Materials
9
Durability
9
Craftsmanship
9
Design
9
Monetary Value
9
Product Value
9
Brand Reputation
9
Expert Valuation
9
PROS
  • Premium build with silver-plated pins
  • SGS certified to UL 2251 and CSA standards
  • Excellent contact fit minimizes wear
  • Includes a zippered storage case
  • Backed by a 2-year warranty
CONS
  • Only available in 80A version
  • Costs more than some alternatives
