Type S 40A Level 2 EV Charger Review

Add to compare
8.4
Expert ScoreRead review

Fast, smart, and portable – the Type S 40A Level 2 EV Charger delivers up to 37 miles per hour with app control, adjustable amps, and a rugged build for safe indoor/outdoor charging.

This is my hands-on review of the Type S 40A Level 2 EV Charger also known as the CHARGEEV 40A Level 2 Charger – a smart, powerful home and portable Level 2 EV charger for EVs and PHEVs.

I’ve been involved in EV charging tech for nearly a decade, reviewing dozens of portable and wall-mounted chargers from major brands. I purchased and tested this Type S 40A Level 2 unit extensively at home and compared it against other popular 40A portable chargers, including the company’s own 16A Level 1 model.

NOTE – This charger is a Level 2 EV charger designed for faster home and public EV charging. If your EV or plug-in hybrid supports Level 2, you’ll see significant charging speed improvements compared to using a Level 1 charger. However, you’ll need a compatible 240V outlet (NEMA 14-50) protected by a 50A dedicated EV charger circuit breaker to take full advantage of the Type S 40A Level 2 EV Charger.

Summary

The Type S 40A Level 2 EV Charger is a well-designed, feature-rich portable EVSE built for serious home charging. It delivers up to 37 miles of range per hour (9x faster than Level 1), offers adjustable current (8A to 40A), and integrates with the Type S app for smart scheduling and cost tracking.

It also features a rugged, high-quality build that’s ready for both indoor and outdoor use. This makes it ideal for daily drivers who want flexibility, speed, and smart functionality without the need for hardwiring.

Based on our testing, the Type S 40A is one of the best portable EV chargers we’ve evaluated. However, top-performing models like the Webasto Go, Battery Tender eCharge, and Schumacher 16 Amp EV charger offer greater portability thanks to their dual-voltage capability.

Add to compare
Webasto Go Dual Voltage Portable EV Charger - Level 1-2, NEMA 14-50/5-15, UL Approved, IP67
Deal
The Webasto Go Dual Voltage Portable EV Charger offers Level 1 and Level 2 charging (120V & 240V), ideal for home or on-the-go use. UL and IP67 rated for safety and durability, it delivers up to 7.7kW of power, charging up to 30 miles per hour. Compatible with all J1772-equipped EVs, including Tesla with an adapter.
Add to compare
Battery Tender eCharge 40 AMP EV Charger - Level 2 Mounted Indoor Outdoor Fast Electric Vehicle Charging Station with Flexible 25ft Cable NEMA 14-50 - 022-3018-DL-WH
Deal
The Battery Tender eCharge 40 AMP EV Charger is a high-performance Level 2 electric vehicle charger, designed for 240V power to deliver fast and efficient charging. Compatible with NEMA 14-50P or hardwired setups, this robust charger is perfect for both home and public use, offering reliable, high-speed charging for your EV.
Add to compare
Schumacher Electric SC1455 Level 2 EV Charger - With Adaptor + 28-Foot Charging Cable - Portable EV Charger Level 1 + 2 - Up to 16A - 120V or 240V - Charges EVs 3X Faster
Deal
The Schumacher SC1455 Level 2 EV Charger offers both Level 1 and Level 2 charging with an included adaptor and 28-foot cable. Capable of delivering up to 16A, it charges electric vehicles up to 3X faster than standard chargers. Compatible with 120V or 240V, this portable charger provides versatile, efficient charging.

Dual-voltage support allows users to charge from both 120V and 240V outlets, making those models more practical for travel or backup charging. While the Type S only supports 240V, it still stands out as the top single-voltage portable EV charger in our best home EV charger lineup. If dual voltage is a non-issue to you, the Type S 40A Level 2 EV Charger would stand on top of our portable EV chargers list in terms of design, and features.

Why You Should Consider the Type S 40A Level 2 Charger

If you want faster, smarter charging without committing to a wall-mounted, hardwired charger, this is one of the most compelling portable units available which we rated higher than the Lectron EV charger which has stood high in our list of best portable EV chargers for years. The Type S 40A Level 2 EV Charger plugs into any 240V NEMA 14-50 outlet and allows amp control from 8A to 40A, making it compatible with various power setups.

The real standout is the smart app (Type S Drive), which lets you monitor your session in real time, schedule charging to align with off-peak hours, or set a kWh cap using “Quantitative Charging” to help manage energy costs. You can even share access with others in your household or workplace.

Specs & Features

  • Voltage: 240V (Level 2)
  • Amps: Selectable: 8A, 16A, 32A, 40A
  • Plug: NEMA 14-50 (no hardwiring required)
  • Connector: J1772 (compatible with all EVs and PHEVs; Tesla requires an adapter)
  • Cable Length: 25 feet
  • App Control: Yes (Type S Drive App: iOS/Android)
  • Smart Modes: Real-Time, Scheduled, Quantitative (kWh)
  • Build: Heavy-duty casing with reinforced cage
  • Weatherproof: IP55 rated
  • Safety: UL-listed; includes overvoltage, overcurrent, overheating, surge, and grounding protection
  • Firmware: OTA updates for new features and performance enhancements

Build Quality & Design

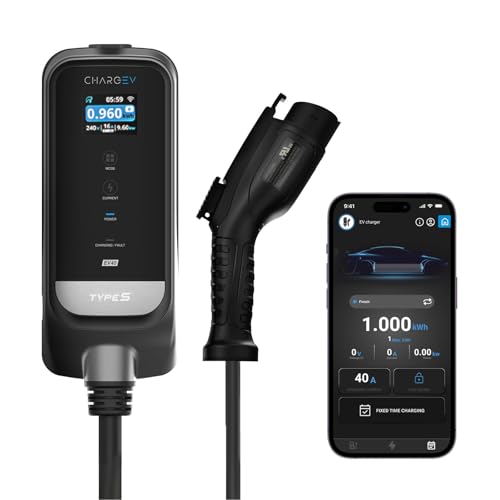

The Type S 40A Level 2 EV Charger has a sleek, modern look that sets it apart from the competition — which is expected, given its hefty price tag. Its build quality, design, and attention to detail make it feel more premium than other options like the Bokman 16A, Skysword II, BougeRV, Aimiler, or Lectron which compete in the same portable EV chargers market as the Type S 40A Level 2 EV Charger. The glossy black front panel almost looks like a full LED screen from a distance, while the back panel includes detailed printed information – such as specifications, safety warnings, certifications, and usage cautions – laid out in a clean, precise format that reminds you of an iPhone box.

Front design details are laid out in a clean vertical flow. At the top is the “CHARGEEV” branding, followed by a small LED display, mode and current indicators, a power icon, and a charging/fault light. At the bottom, bold “EV40” and “Type S” initials sit against a stylish gray background.

The charger feels solid in hand. At 12 lbs, it has real heft, and the rugged casing is built to handle bumps and weather exposure. It looks and feels like a high-quality unit.

The 25-foot cable is thick (0.636″ diameter), yet remains flexible and easy to manage. Impressively, the input cable is even thicker than the output — a rare sign of extra attention to safe power delivery.

The J1772 connector has a sturdy, grippy finish that’s easy to handle. The only minor downside is the thumb release, which feels a bit soft and could use more tactile feedback.

Ease of Use

The Type S 40A Level 2 EV Charger is genuinely plug-and-play. Just plug it into a NEMA 14-50 outlet and you’re ready to charge — no setup or tools required. The onboard LCD is clean and intuitive, making it easy to monitor the charging status and adjust amperage remotely.

Smart features come via the Type S Drive App, which adds real value. From remote start/stop and usage reports to scheduled charging and multi-user support, the app expands the charger’s functionality well beyond a standard portable unit.

For those looking to install a dedicated outlet, setup is straightforward. Our installation followed NEC guidelines as shown in the Type S 40A Level 2 EV charger wiring diagram below:A detailed wiring diagram titled "Type S 40A Level 2 EV Charger NEMA 14-50 Wiring Diagram" illustrates the electrical connection from a home's main panel to a NEMA 14-50 outlet for an EV charger. The diagram shows power from the utility (L1-Hot 1, L2-Hot 2, N-Neutral) feeding into active lugs on a main panel breaker. Within the panel, a 50A dedicated circuit breaker is highlighted, with wires (L1-red, L2-black, N-white, G-green, specified as 6 AWG 90C Copper Wire) running from this breaker, the neutral busbar, and the ground busbar (which is connected to an earth conductor and ground rod) through a 3/4" conduit. These wires connect to a NEMA 14-50 outlet. A Type S 40A Level 2 EV Charger, rated at 9.6kW (240V=40A) and equipped with a NEMA 14-50 plug, is depicted connecting to this outlet. The charger features a 25ft cable terminating in a J1772 connector for the vehicle, and an inset shows the "Type S Drive App" for smart charging control. Important callouts and warnings emphasize that active lugs are continuously live, to keep branch circuit wiring outside gutter posts and avoid crossing wires over breakers, that wires should be upsized on long runs to keep voltage drop under 3% per NEC, and that a 40A charger requires a 50A breaker per the NEC 80% rule.

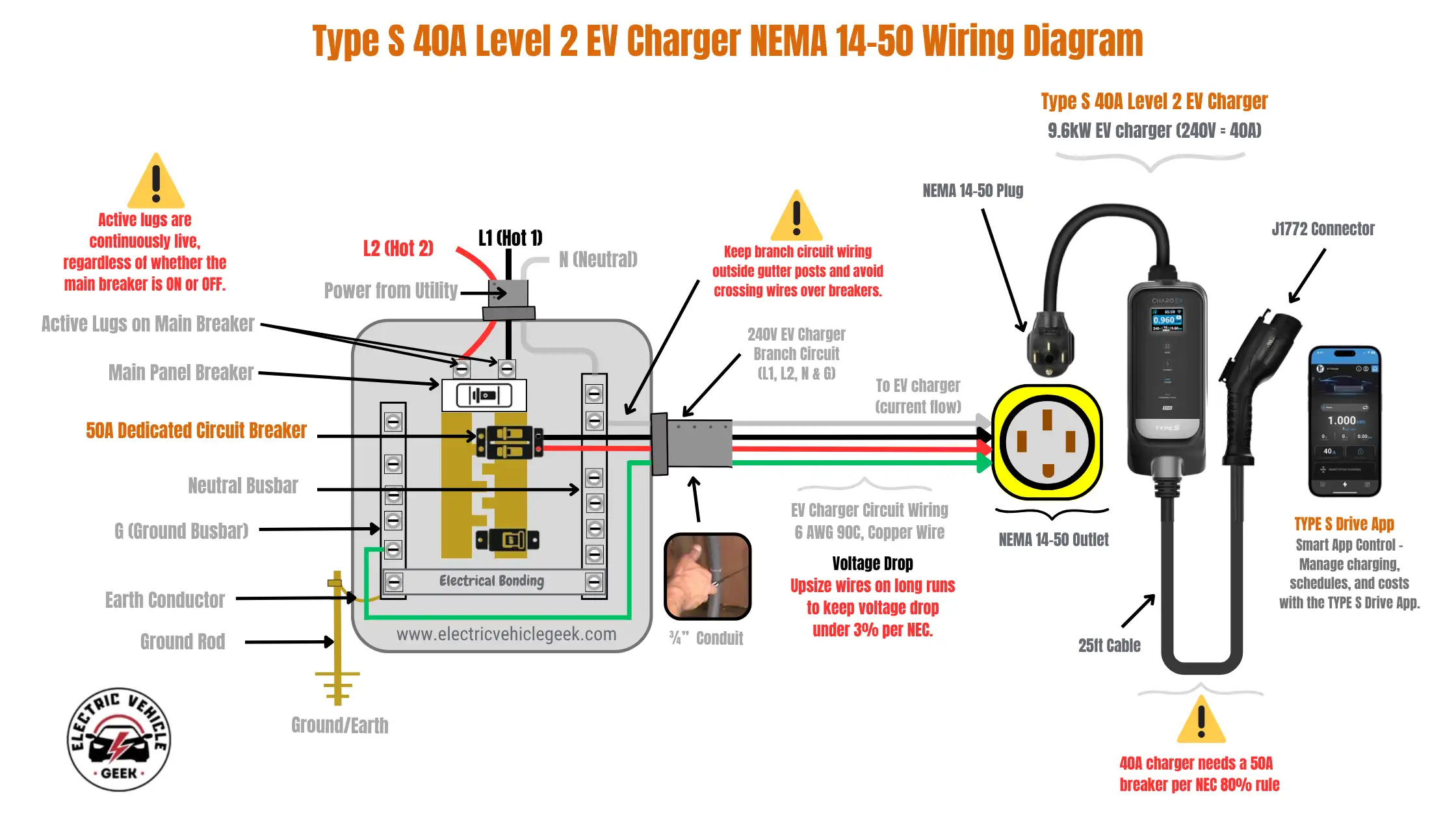

The Type S 40A Level 2 EV charger wiring diagram above illustrates a 50A circuit wired with 6 AWG copper (L1, L2, neutral, and ground) routed through ¾” conduit from the main panel to a NEMA 14-50 outlet. Key safety callouts include keeping wiring outside gutter posts, avoiding crossing wires over breakers, avoiding the active lugs in the panel, and complying with the 80% rule (a 40A charger requires a 50A breaker for continuous duty). The charger plugs directly into this outlet and delivers up to 9.6kW through its 25-foot J1772 cable.

Also included in the box is a wall-mount bracket and a storage bag, giving you flexibility for either a semi-permanent installation or fully portable use. Whether you’re a renter or a homeowner, the setup options make this charger as easy to install as it is to use.

Performance

At 40 amps, charging is quick. I consistently achieved 35–37 miles of range per hour on a mid-size EV. The amperage control is useful when you want to slow the charge (for solar setups or limited circuits), and the app makes it easy to track costs or schedule off-peak sessions.

Smart charging modes work reliably — Scheduled Charging ran perfectly overnight, and the Quantitative mode allowed me to pre-load just the energy I needed before heading out.

Advanced Safety

The Type S 40A Level 2 EV Charger is built with safety at its core. It meets UL standards and offers comprehensive protection features, including safeguards against overvoltage, overcurrent, overheating, leakage, and power surges. This full-spectrum safety system ensures reliable charging with minimal risk to your vehicle or home.

It’s rated IP55 for water and dust resistance, making it suitable for indoor or outdoor use. Whether installed in a garage, carport, or open driveway, it performs reliably – even in light rain or dusty environments.

What looks like a rugged outer case is the charger’s integrated body. The front panel is recessed within a raised edge, offering extra protection against drops or impacts—similar to a rugged phone case. This clever design shields the interface while maintaining a sleek look.

From the side, the charger shows off its weatherproofing details. Hidden screws and a ribbed housing design give it a structured, accordion-like profile, both stylish and functional. Rubberized gaskets at cable entry points seal out moisture and debris. These gaskets are thicker than the cables themselves but remain flexible thanks to a porous texture that allows movement without compromising protection.

The J1772 connector is attached securely with four screws after internal wiring is completed – no shortcuts here. Both the release button and connector body feature deep ridges for enhanced grip, making it easy to plug and unplug even with wet or gloved hands. A protective cap keeps the connector pins safe from dirt, rain, and corrosion when not in use.

How It Compares to Type S 16A Level 1 Charger

Add to compare
Type S 16A Level 1 EV Charger – 120V Portable Home EV Station, Adjustable Amps (6A-16A), J1772 Connector, 24.6ft Cable, Plug & Charge, Weatherproof – Reliable Overnight Charging for All EVs & PHEVs
Deal
The Type S 16A Level 1 EV Charger supports 120V and 240V EV charging via NEMA 5-15, 6-20, and 10-30 outlets. Compact, weather-resistant, and adjustable, it's perfect for home, travel, or emergencies.

While both chargers share a rugged build and portable design, the Type S 40A Level 2 Charger is significantly more advanced, the EV charger delivers up to 9x faster charging via a NEMA 14-50 outlet and includes a built-in LCD screen, smart app control, and multiple charging modes for daily home use.

The 16A Level 1 charger, by contrast, supports both 120V and 240V charging using NEMA 5-15, NEMA 6-20, and NEMA 10-30 outlets, the EV charger lacks smart features but offers unmatched flexibility and value for travel, public charging emergencies, or homes without a dedicated 240V circuit.

If you need full-speed fast charging at home, go with the 40A. If you want budget-friendly, universal compatibility for trickle charging, the 16A is the better fit.

Customer Feedback

Verified buyers praise the Type S 40A Level 2 charger’s fast charging speed, reliable app connectivity, and robust build. Many noted how well it works for both daily use and as a semi-permanent wall-mounted unit. A few users expressed a desire for outlet adapters (like 6-50 or 10-30), but acknowledged the charger’s excellent cable quality, safety, and feature set made it a standout in its price range.

Who Should Buy This Charger?

  • EV owners with access to a 240V NEMA 14-50 outlet
  • Households with multiple EVs needing a shared, fast-charging solution
  • Anyone who wants flexible charging, smart features, and portable convenience
  • Users seeking a reliable, outdoor-capable Level 2 charger that doesn’t require

Recommended NEMA 14-50 Outlets

For optimal performance and safety, pair your Type S 40A Level 2 EV Charger with one of our recommended NEC-certified NEMA 14-50 outlets. The outlets listed below are rated for the 40A continuous load of your charger on a 50A circuit and are compatible with the required 6 AWG wiring.

Add to compare
Hubbell Lighting 125V 50A 3-Pole 4-Wire Receptacle – HBL9450A
Deal
The Hubbell 14-50 outlet is our number #1 NEMA 14-50 outlet that we recommend for plug-in Level 2 EV charger installations, the outlet combines safety, durability, and performance, making it a top choice for EV owners with a plug-in Level 2 EV charger aiming to establish a dependable home charging station.
Add to compare
Bryant Electric 9450FR 50 Amp 125/250V NEMA 14-50R Flush Straight Blade Receptacle, Black
Deal
The Bryant 14-50 outlet is a durable, 50-amp solution for Level 2 EV charging. Built with heat-resistant materials, it supports #10-6 AWG wires and stays cool at 75°F during extended use. UL-listed and easy to install, it delivers reliable performance, making it a safe and efficient choice for EV owners.
Add to compare
Leviton 279-S00 50 Amp, 125/250V, Nema 14-50R, 3P, 4W, Flush Mounting Receptacle, Straight Blade, Industrial Grade, Grounding, Side Wired, steel Strap, Black
Deal
The Leviton NEMA 14-50 outlet is a reliable, durable choice for Level 2 EV charging, supporting 50 amps and 125/250 VAC. It features easy-to-identify terminals, accepts up to 6 AWG wires, and includes mounting hardware. However, it lacks instructions, and spring-loaded contacts may wear over time, posing a fire risk.

Recommended Weatherproof NEMA 14-50 Outlet Covers

For all Type S 40A Level 2 EV Charger installations, we specify the use of a heavy-duty, weatherproof outlet cover. The models listed below have passed our rigorous testing for durability and environmental sealing.

Add to compare
TayMac MM420C 1-Gang Nonmetallic Extra Duty Weatherproof In-Use Horizontal/Vertical 16-in-1 Standard Cover, 2.75 in, Clear
Deal
The TayMac MM420C Extra Duty EV Charger Outlet Cover provides strong outdoor protection for EV charger outlets. Constructed from durable high-impact polycarbonate, it ensures quick installation and versatile 16-in-1 configuration. Certified to cULus and NEMA standards, it includes a lockable tab. For enhanced EV charger theft protection, an EV charger lockbox is recommended.
Add to compare
TayMac MX3200 RaynGuard Extra Duty Metal Weatherproof in-Use Cover, 1-Gang, Gray, 3.55 x 3.37 x 6.12 inches
Deal
The TayMac MX3200 Extra Duty EV Charger Outlet Cover is a durable, flexible, and secure solution for outdoor EV charger installations, providing peace of mind and reliable protection for your equipment.
Add to compare
TayMac MM720G 1-Gang Horizontal or Vertical Weatherproof Jumbo Extra Duty While in Use Cover , Gray
Deal
The TayMac Extra Duty EV Charger Outlet Cover offers durable, weatherproof protection for outdoor NEMA outlets, specifically designed for plug-in EV chargers. With a quick-install design, 16 configuration options, and a lockable tab to prevent theft, its tough polycarbonate construction ensures secure and reliable performance for your EV charging needs.
Add to compare
TayMac MM410C Single Horizontal/Vertical Mount 1-Gang Weatherproof In-Use Electrical Outlet Cover for Home Improvement, 2.75 in, Clear
Deal
The TayMac Duplex EV Charger Outlet Cover offers durable protection for indoor EV charging outlets. Made from high-impact polycarbonate, it features a sleek, clear design and supports easy installation with a Quick-Fit system. Ideal for garages, it accommodates most outlets but may not fit all plug configurations.

Using a certified cover is critical to protect your NEMA 14-50 outlet from moisture, dust, and debris, which can lead to corrosion, short circuits, and accidents. These covers ensure the long-term safety and reliability of your charging equipment.

Potential Alternatives

Add to compare
MACH 3 Fast 40 Amp Level 1&2 Portable EV Charger, Electric Vehicle Charging Station, 120-240V NEMA 14-50 w/ 5-15 Adapter. SAE J1772 car Connector & Tesla mobile NACS, Outdoor EVSE, 25ft Cable w/holder
Deal
The ApexCharger MACH 3 EV Charger is a compact, dual-voltage, portable Level 1/2 charger featuring a J1772 connector, a premium ApexCharger PRO 1 NACS adapter, pulsing LED indicators, Wi-Fi connectivity with app control, and IP67-rated weather resistance—making it ideal for on-the-go charging and as a reliable backup or emergency EV charger.
Add to compare
Type S 16A Level 1 EV Charger – 120V Portable Home EV Station, Adjustable Amps (6A-16A), J1772 Connector, 24.6ft Cable, Plug & Charge, Weatherproof – Reliable Overnight Charging for All EVs & PHEVs
Deal
The Type S 16A Level 1 EV Charger supports 120V and 240V EV charging via NEMA 5-15, 6-20, and 10-30 outlets. Compact, weather-resistant, and adjustable, it's perfect for home, travel, or emergencies.
Add to compare
Type S 40A Level 2 EV Charger – 240V Smart Charging, Adjustable Amps (8A-40A), App Control, J1772 Connector, 25ft Cable, Waterproof, NEMA 14-50 Plug, Fast & Safe Charging for All EVs & PHEVs, UL std
Deal
Fast, smart, and portable - the Type S 40A Level 2 EV Charger delivers up to 37 miles per hour with app control, adjustable amps, and a rugged build for safe indoor/outdoor charging.
Add to compare
EMPORIA Pro Level 2 EV Charger with PowerSmart - 48 amp Fast Charger with NEMA 14-50 or Hardwire and J1772 Connector - 240v Electric Vehicle Charging Station and 25' EV Charging Cable
Deal
Emporia Pro EV Charger offers 48A fast Level 2 EV charging with PowerSmart Load Management. Includes NEMA 14-50 plug or hardwire installation options, 25' cable, and real-time energy optimization for efficient charging.
Add to compare
WOLFBOX Level 2 EV Charger 40 Amp - Smart Display, RFID Card, 25ft Cable, Outdoor/Indoor, NEMA 14-50 EV Charger Level 2, WiFi Enabled, 240V Electric Vehicle Charging Station for Electric Automobile
Deal
The WOLFBOX Level 2 EV Charger is a home Level 2 EV charger that offers fast, reliable charging with a sleek, weatherproof design. Featuring a 25ft cable, smart app integration, and compatibility with all J1772 EVs, it’s perfect for both home and public use. Choose between plug-in or hardwired models for convenient, future-proof charging at any location.
8.4Expert Score
The Type S 40A Level 2 EV Charger delivers fast, reliable home charging with smart app control, adjustable amps, and advanced safety features. It’s well-built, easy to install, and ideal for EV owners needing speed, flexibility, and remote monitoring—all in a sleek, portable design that works indoors or outdoors.
Features
7.5
Real World Usage
8
Materials
8.5
Durability
9
Craftsmanship
8.5
Design
9
Monetary Value
8
Product Value
8.5
Brand Reputation
8.5
Expert Valuation
8.5
PROS
  • Premium looks
  • Adjustable amperage
  • Best rugged design In portable Portable EV chargers
CONS
  • Doesn't offer dual voltage capabilities
