Browse 16 AMP EV Chargers
Browse top-rated 16 AMP EV chargers, including Level 1 (120V) and Level 2 (240V) models. Compare features, charging speeds, and compatibility to find the best charger for your EV.
Best 16 AMP EV Chargers
No one tests more EV chargers than we do. Need a charger with a maximum output of 16 amps? Discover our best-rated models of 2025.
Best Budget EV Charger
Energy Star Certified for Efficiency
High Quality 16A EV Charger
Designed to Meet UL Standards
Best 16A Level 2 EV Charger
Charges 3x faster on just 120V

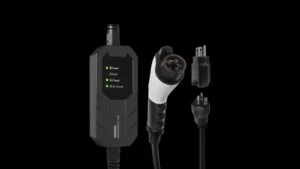

Best Level 1-2 16A EV Charger
Dual Voltage: 100-240V
See All 16 Amp EV Charger (J1772 or Tesla/NACS)
Explore all our top-rated 16 AMP Level 1 & 2 EV chargers that feature J1772 or Tesla/NACS connectors. Read expert reviews and find the best trickle-charging solution for your electric vehicle today.
What is a Level 16 AMP EV Charger?
A 16 Amp EV charger delivers up to 3.83 kW (Level 2, 240V) or 1.92 kW (Level 1, 120V), depending on the circuit. It charges at 3–12 miles of range per hour and is ideal for daily use where faster charging isn’t essential. These chargers require a dedicated 20A circuit with 12 AWG wiring, follow NEC 80% load rules, and may be hardwired or plugged into outlets like NEMA 5-20, 6-20, or 14-20, depending on voltage.
16 Amp Level 1 charger vs 16 Amp Level 2 charger
A 16 Amp Level 1 charger and a 16 Amp Level 2 charger deliver the same current but differ significantly in voltage, charging speed, and installation requirements.
16 Amp Level 1 Charger
Uses a standard 120V outlet (NEMA 5-20) on a dedicated 20A circuit with 12 AWG wiring. Delivers 1.92 kW, adding 3–5 miles of range per hour. Ideal for overnight home charging, especially for low-mileage drivers. Easy to install, often using existing outlets; GFCI protection and proper grounding are required.
16 Amp Level 2 Charger
Uses a 240V outlet (NEMA 6-20 or NEMA 14-20) on a dedicated 20A double-pole circuit with 12 AWG copper wiring. Delivers up to 3.83 kW, adding 10–12 miles of range per hour (not 20 at 16A). Ideal for faster home charging, supporting daily commuting needs. Requires professional installation or proper outlet access. Maybe hardwired or plug-in, with GFCI protection and adherence to NEC codes for wire sizing, voltage drop, and circuit safety.
16 Amp Level 1 EV Charger Circuits
A 16 Amp Level 1 EV charger must be connected to a dedicated 120V circuit using a single-pole 20A breaker. The circuit should be wired with 12 AWG solid copper conductors (hot and neutral) and a 12 AWG copper ground, rated for at least 75°C insulation (THHN or equivalent). These chargers typically use a NEMA 5-20 outlet. GFCI protection is often required and should be installed per local code requirements

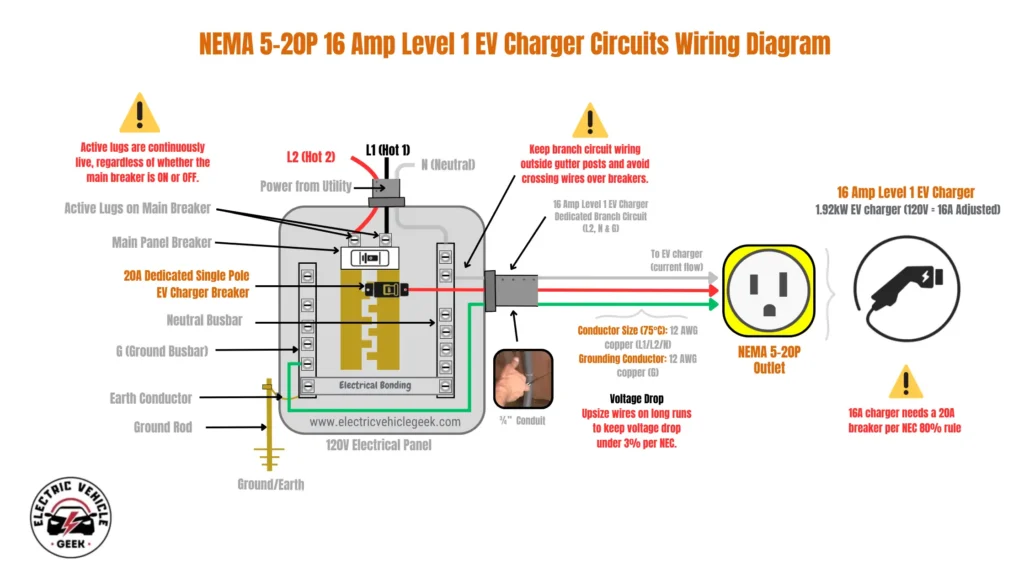

NEMA 5-20P 16 Amp Level 1 EV Charger Circuits Wiring Diagram
The diagram below shows a 120V wiring setup for a 16A Level 1 EV charger (1.92kW) using a NEMA 5-20P outlet. A 20A single-pole breaker feeds three 12 AWG copper wires – black (Hot), white (Neutral), and green (Ground) – through a conduit to the outlet. A plug-in EV charger connects to the receptacle.
16 Amp Level 2 EV Charger Circuits
A 16 Amp Level 2 EV charger must be connected to a dedicated 240V circuit using a double-pole breaker rated for 20 amps. The circuit should be wired with 12 AWG solid copper conductors and a 12 AWG copper ground, rated for at least 75°C insulation (THHN or equivalent). These chargers can be hardwired or installed using a NEMA 6-20 or 14-20 outlet, depending on the charger’s design. Proper GFCI protection may be required based on local code.

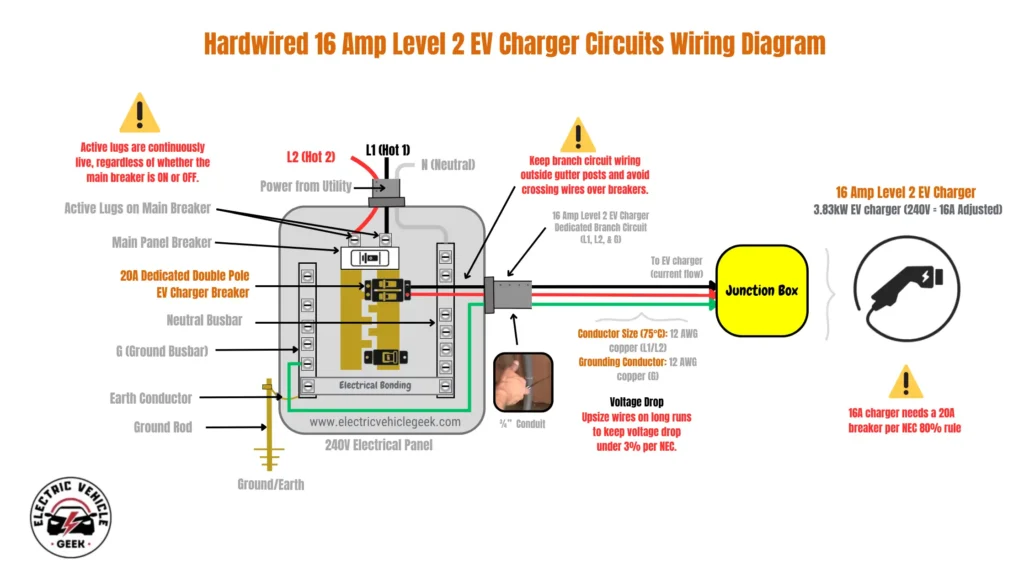

Hardwired 16 Amp Level 2 EV Charger Circuits Wiring Diagram
The diagram below shows a code-compliant setup for a 16A Level 2 EV charger (3.83kW). It uses a 20A double-pole breaker in a 240V panel, feeding 12 AWG copper wires – black (L1), red (L2), and green (ground) – through conduit to a junction box and then to the charger.

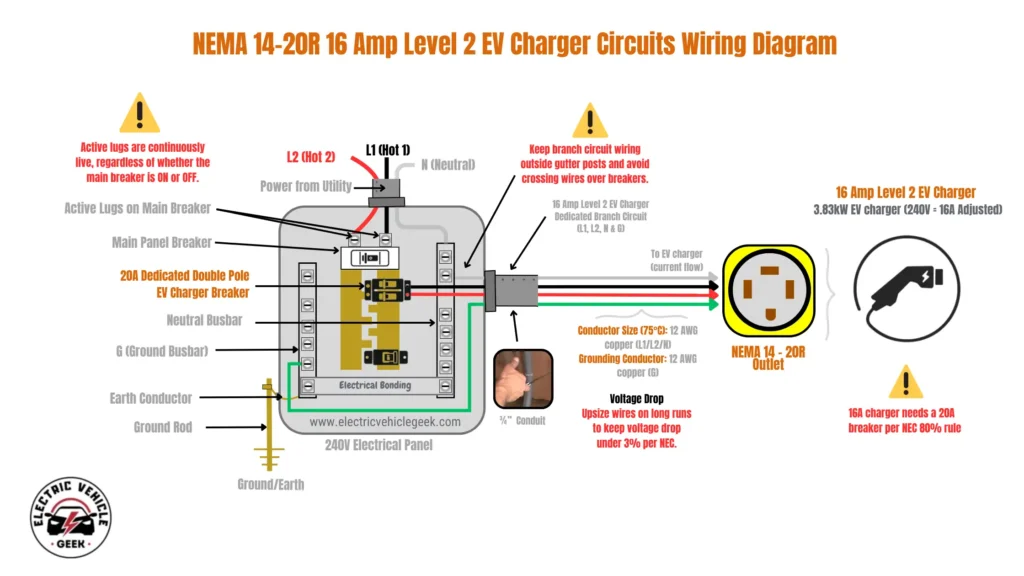

NEMA 14-20R 16 Amp Level 2 EV Charger Circuits Wiring Diagram
The diagram below details a 240V wiring setup for a 16A Level 2 EV charger (3.83kW) using a NEMA 14-20R outlet. A 20A double-pole breaker feeds four 12 AWG copper wires: black (L1), red (L2), white (Neutral), and green (Ground), routed through the conduit to the outlet. A plug-in EV charger connects directly to the receptacle.

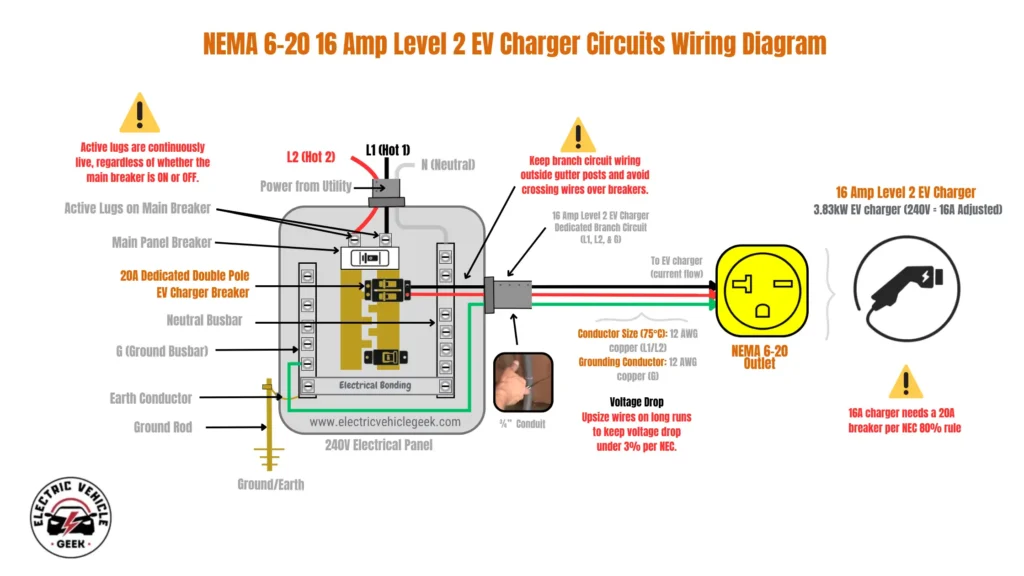

NEMA 6-20 16 Amp Level 2 EV Charger Circuits Wiring Diagram
The diagram below shows a 240V setup for a 16A Level 2 EV charger (3.83kW) using a NEMA 6-20 outlet. A 20A double-pole breaker feeds three 12 AWG copper wires – black (L1), red (L2), and green (Ground) – through the conduit to the outlet. No neutral wire is used. A plug-in EV charger connects to the NEMA 6-20.
Need More Speed or Less Power? Compare Home EV Charger Amperages
16A EV chargers deliver 3–12 miles of range per hour – great for plug-in hybrids or daily commutes. Want slower charging? See 12A models below. Need more speed? Explore 24A to 80A EV chargers below.
120V, 12A, 1.44 kW
Adds approx. 3–8 miles of range per hour.
120V or 240V, 16A, 1.92–3.84 kW
Adds approx. 3–12 miles of range per hour
240V, 24A, 5.76 kW
Adds approx. 22 miles of range per hour
240V, 32A, 7.68 kW
Adds approx. 26 miles of range per hour
240V, 40A, 9.6 kW
Adds approx. 30 miles of range per hour
240V, 48A, 11.5 kW
Adds approx. 40 miles of range per hour
240V, 80A, 19.2 kW
Adds approx. 75 miles of range per hour
