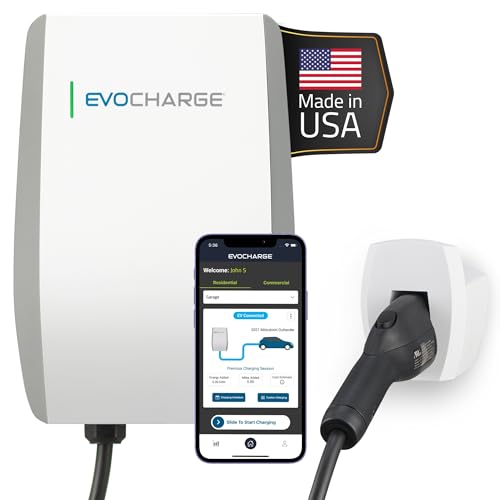

EvoCharge Home 50 EV Charger Review
The EvoCharge Home 50 EV Charger is a 50 Amp, 240V Level 2 EV charger available in J1772 or NACS (Tesla) versions. Hardwired for safety, it delivers up to 45 miles of range per hour with smart scheduling, remote control, and energy tracking. Ideal for indoor or outdoor home installation.
This is my expert review of the EvoCharge Home 50 EV Charger, a 50 Amp hardwired Level 2 EV charger designed for residential and light commercial use.
EvoCharge is a U.S.-based EVSE manufacturer known for UL-listed, Energy Star-certified equipment made to meet the demands of modern EV owners. The Home 50 is their most powerful home unit – offering fast 50A EV charging (12kW), advanced smart EV charging features, and rugged reliability in a compact, code-compliant design.
I’ve tested the EvoCharge line of chargers, including the first-generation EvoCharge iEVSE® Home 32 Smart Level 2 EV Charger, alongside the EvoCharge Home 50 and other top-rated high-amp EVSEs like the Wallbox Pulsar Plus 48A, Emporia Pro EV Charger, and ApexCharger MACH 2. Here’s how the EvoCharge Home 50 EV Charger stacks up based on installation, performance, smart EV charging features, and day-to-day use.
Summary
The EvoCharge Home 50 EV Charger is a 50-amp, 240V Level 2 charging station that delivers up to 12 kW of power – adding approximately 45 miles of range per hour, depending on the EV. It comes hardwired with a 25-foot cable and is available in two connector options: a J1772 for universal EV compatibility, or a NACS (Tesla) connector for direct Tesla/NACs EV charging.
Unlike its first-generation plug-in unit, the EvoCharge iEVSE® Home 32 Smart Level 2 EV Charger, the hardwired design ensures greater safety, higher reliability, and NEC compliance for continuous high-amperage use. The charger is housed in a NEMA 4 weather-rated enclosure, meaning it’s built to operate safely in rain, snow, or dusty garages year-round.
Smart EV charging functionality is handled through the EvoCharge mobile app and desktop portal, which supports remote start/stop, scheduling, real-time charging status, multi-user access, cost tracking, and energy monitoring.
The Home 50 is Made in the USA, UL listed, and Energy Star certified, with a clean, durable design meant for long-term residential installations.
One thing we noted when unboxing the EvoCharge Home 50 J1772 EV Charger is that it doesn’t include a J1772 to NACS (Tesla) adapter. In contrast, competitors like the ApexCharger MACH series EV chargers include their own PRO 1 adapter in the box. If you own both a J1772 EV and an NACs EV, you’ll need to buy a third-party adapter separately. For better value and built-in compatibility, consider the ApexCharger MACH series, which includes the adapter at no extra cost and is generally more budget-friendly.
Why Choose the EvoCharge Home 50?
If you want fast, safe charging at home, and prefer a professional, hardwired setup, the EvoCharge Home 50 EV Charger delivers exactly that. With a max output of 50 Amps, it charges faster than competing hardwired EV chargers like the ChargePoint Home Flex or Tesla Wall Connector (when capped at 48A), and its hardwired-only design makes it ideal for homeowners looking for a permanent high-powered 50A EV charger installation, If their EV onboard charger supports 12kW.
Other key reasons to consider the EvoCharge Home 50 EV Charger:
- Up to 45 miles of range added per hour (vehicle-dependent)
- Adjustable amperage from 16A to 50A to match your home’s capacity
- The 25-foot-long cable gives you the flexibility to reach either side of a two-car garage
- Hardwired installation is safer, cleaner, and NEC-compliant for 50A use
- Smart charging app and portal make daily use seamless, including cost estimates and sharing access with household members
- Backed by a 3-year warranty and U.S.-based support
This unit is best suited for EV owners who want high performance with minimal complexity, and who value long-term electrical safety over plug-in convenience.
Specs & Features
- Power Output: Up to 50A (adjustable from 16A–50A)
- Voltage: 240V
- Connector Type: SAE J1772 or NACS Connector
- Charging Speed: Up to 45 miles of range/hour
- Cable Length: 25 feet
- Smart Features: Schedule, monitor, control, and share with up to 5 users.
- Connectivity: Wi-Fi via EvoCharge mobile app and desktop portal
- Enclosure Rating: NEMA 4 (indoor/outdoor weatherproof)
- Installation: Hardwired only (NEC-compliant for >40A)
- Certifications: UL Listed, Energy Star Certified
- Made in: USA
- Warranty: 3 years (residential use)
App Control & Smart Features
The EvoCharge app (Android, and iOS) is intuitive, stable, and purpose-built. You can access it from your smartphone or desktop browser to:
- Start and stop charging sessions remotely
- Monitor real-time charging status
- View charging history, session cost estimates, and energy usage
- Share access with up to 5 members
- Schedule off-peak charging to reduce electricity bills
While the EvoCharge app lacks the granular real-time power metrics such as instantaneous kW draw and line voltage offered by its competitors such as the ApexCharger Smart Life interface, its core features remain reliable and fully meet the needs of the majority of EV owners.
Performance in Real-World Testing
I tested the EvoCharge Home 50 J1772 EV Charger with a Tesla Model 3 (using the J1772 to NACS adapter – the EvoCharge Home 50 EV Charger has a NACs version if you own a NACs EV), a Rivian R1S, and a Chevrolet Bolt EUV. All vehicles are charged at full-rated speeds depending on the configured amperage.
- Tesla Model 3: ~48 miles/hour (50A configuration)
- Rivian R1S: ~26 miles/hour (48A configuration – Rivian R1S has an onboard AC charger that is limited to 11.5 kW)
- Chevy Bolt EUV: ~40 miles/hour (50A configuration)
The unit remained cool and quiet, even during back-to-back full charges. It automatically resumed charging after a simulated power outage and triggered no breaker trips or thermal faults over several weeks of testing.
Safety & Certifications
This is one of the most rigorously safety-tested units I’ve reviewed:
- UL Listed (certified to meet U.S. electrical safety standards)
- Energy Star Certified (meets efficiency guidelines)
- Built-in GFCI protection
- NEMA 4 weather-rated enclosure
- Complies with NEC for continuous 50A use
If you’re looking for a future-proof Level 2 charger that meets inspection requirements and supports high-amperage 12 kW onboard EV chargers – like those in the Hummer EV, Ford F-150 Lightning, or dual-motor Teslas – the EvoCharge Home 50 delivers on every front.
EvoCharge Home 50 EV Charger Installation
The EvoCharge Home 50 EV Charger is a hardwired-only unit, which aligns with NEC code requirements for EV chargers delivering more than 40A. That means you’ll need a licensed electrician to install it, but the benefit is a cleaner, more secure, and code-compliant hardwired install. EvoCharge partners with EV Connect, Chargie, AmpUp, and Wevo who we recommend requesting installation quotes from all for comparison purposes as installation costs vary by installer.
the EvoCharge Home 50 EV Charger installation is straightforward with a clear wall template and flexible conduit entry points. The slim profile (13.8″ H × 9.7″ W × 3.5″ D) and included mounting brackets provide flexibility for installation inside a garage, on an exterior wall, or on an EV charger pedestal. However, the EV charger wall mounting bracket sliding mechanism used to mount the charger from the bottom up can be challenging in tight spaces like EV charger lockboxes with side panels that restrict movement during installation.
The EvoCharge Home 50 EV Charger offers two power cable knockouts – one on the rear and one on the bottom – allowing for flexible, clean installation whether you’re mounting the charger on a wall, pedestal, or inside a lock box.
The included 25-foot cable offers plenty of reach without creating clutter, and the NEMA 4 rating means it’s fully weather-sealed for outdoor use. Rain, sleet, and snow won’t slow it down.
Unlike hardwired EV charger competitors competitors like the Wallbox Pulsar Plus 48A, Emporia EV Charger, ApexCharger MACH 1, and ApexCharger MACH 2, which are limited to 48A (11.5kW), the EvoCharge Home 50 delivers 50A (12kW) – 2 amps and 0.5kW more – for faster charging. This is especially beneficial if your EV has a larger battery and requires quicker charging times. However, choosing the 50A configuration requires a higher-rated dedicated circuit breaker of 70A, and thicker conductors (4 AWG hot and 8 AWG ground), compared to the 48A setup which needs a 60A breaker, 6 AWG hot wires, and 10 AWG ground conductor – potentially increasing installation costs.
Since the EvoCharge Home 50 EV Charger amperage (16A, 24A, 32A, 40A, 48A, and 50A) is selected manually through a hard cap physical dipswitch located inside the EV charger, the EV charger can be hardwired in 6 different configurations, with different breaker ratings, and conductor sizes depending on your home EV charging load.
EvoCharge Home 50 EV Charger installation inspections are essential to guarantee a safe and reliable charging setup. These inspections, typically conducted by licensed electricians or qualified professionals, ensure compliance with electrical codes, manufacturer guidelines, and safety standards. Inspectors carefully assess wiring quality, proper grounding, breaker sizing, and the overall integrity of the charging system.
A common issue we’ve encountered involves EV chargers with remote amperage adjustment features failing inspections due to incorrect installation at lower-rated breaker and wire sizes. Because remote amperage can be inadvertently increased beyond the installed capacity, it risks overloading the circuit, leading to potential safety hazards and code violations. Proper adherence to the highest-rated configuration for breaker and conductor sizing is critical to passing inspection and maintaining long-term system safety.
EvoCharge Home 50 EV Charger Installation Guide
The EvoCharge Home 50 EV Charger offers flexible installation options to accommodate a wide range of home electrical panel loads for EV charging. It supports multiple current configurations based on internal switch positions, each requiring specific breaker ratings, conductor sizes, and grounding conductors. Below are the supported configurations, with installation details for each.
Note: All hardwired EvoCharge Home 50 EV Charger installations must comply with EV Charger Earthing requirements, including proper grounding and bonded grounding at the main service panel, following NEC 2023 guidelines. EvoCharge Home 50 EV Charger installation must be performed by qualified EV charger installers. Terminal block connections must be torqued to spec using a calibrated torque driver or wrench to ensure safe, reliable operation. For a smooth, professional install, check out our EV Charger Installation Tools – the exact professional tools we use when installing high-powered EV chargers like the EvoCharge Home 50.
EvoCharge Home 50 EV Charger 16A Charging Configuration (Switch Position 3)
This 16A Level 2 EV charger delivers 240 volts of power, offering up to 3.83 kW of charging output – ideal for overnight charging and light-duty EV use.
For light-duty charging applications, the 16A EvoCharge Home 50 EV Charger configuration is ideal and easy to integrate into most existing electrical systems.
- Breaker Rating: 20A
- Minimum Conductor Size (75°C): 12 AWG copper (L1/L2)
- Minimum Equipment Grounding Conductor: 12 AWG copper (G)
- Terminal Torque Requirements: 18–10 AWG: 20 lb-in (2.3 N·m)

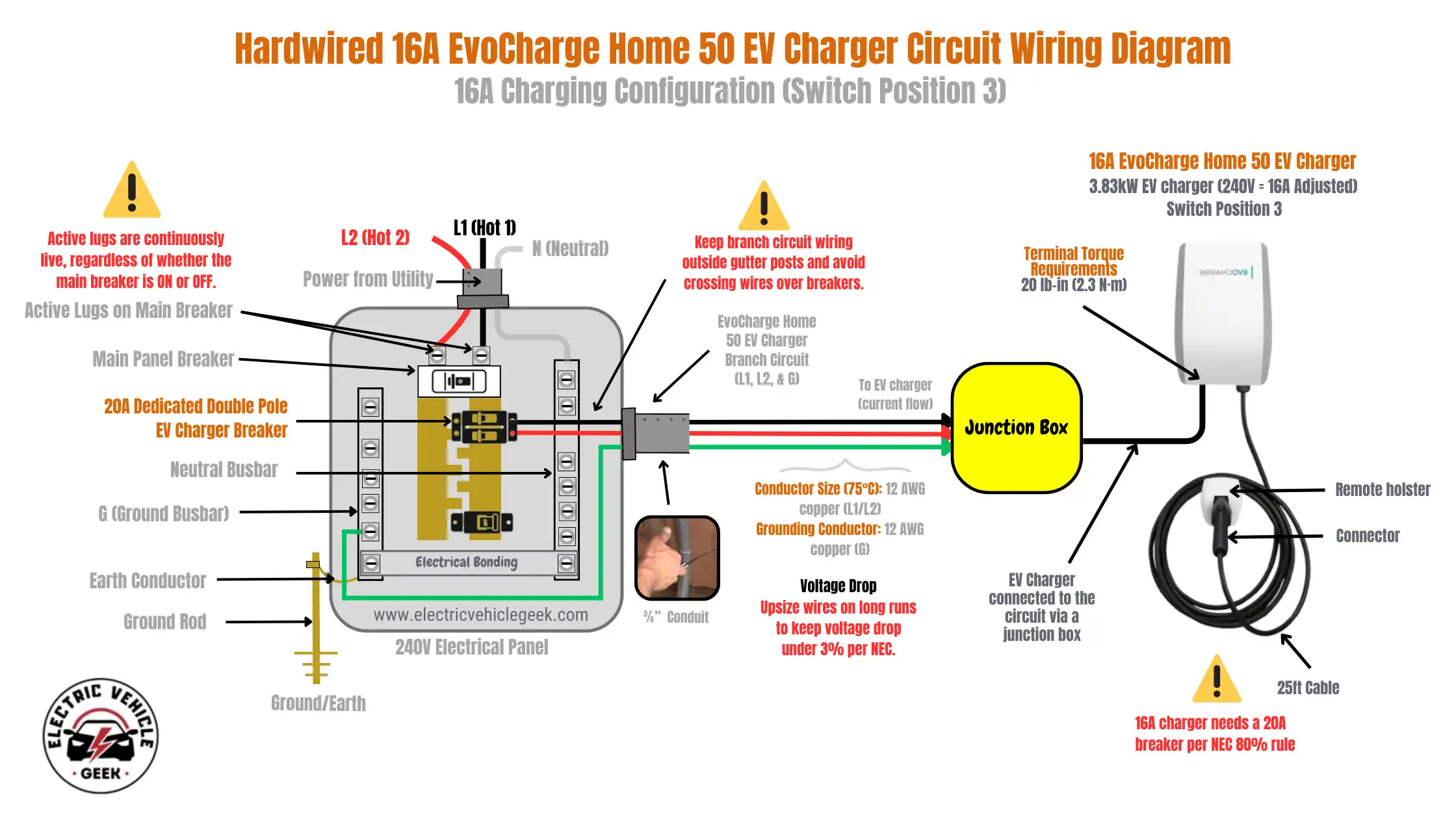

Depicted here is the circuit wiring design for a 16A hardwired EvoCharge Home 50 EV Charger installation.
EvoCharge Home 50 EV Charger 24A Charging Configuration (Switch Position 4)
Engineered for higher efficiency, this 24A configuration supplies 5.8 kW at 240V, making it a solid mid-range option for faster home EV charging.
This EvoCharge Home 50 EV Charger setup balances faster-charging speed with moderate electrical load requirements.
- Breaker Rating: 30A
- Minimum Conductor Size (75°C): 10 AWG copper (L1/L2)
- Minimum Equipment Grounding Conductor: 10 AWG copper (G)
- Terminal Torque Requirements: 18–10 AWG: 20 lb-in (2.3 N·m)
The following illustration details the circuit wiring connections for a 24A hardwired EvoCharge Home 50 EV Charger setup.
EvoCharge Home 50 EV Charger 32A Charging Configuration (Switch Position 5)
With a 7.68 kW output at 240 volts, this 32A charger strikes a balance between speed and compatibility, suitable for most electric vehicles.
For households seeking quicker overnight charging without maxing out panel capacity.
- Breaker Rating: 40A
- Minimum Conductor Size (75°C): 8 AWG copper (L1/L2)
- Minimum Equipment Grounding Conductor: 10 AWG copper (G)
- Terminal Torque Requirements: 8 AWG: 20 lb-in (2.8 N·m)

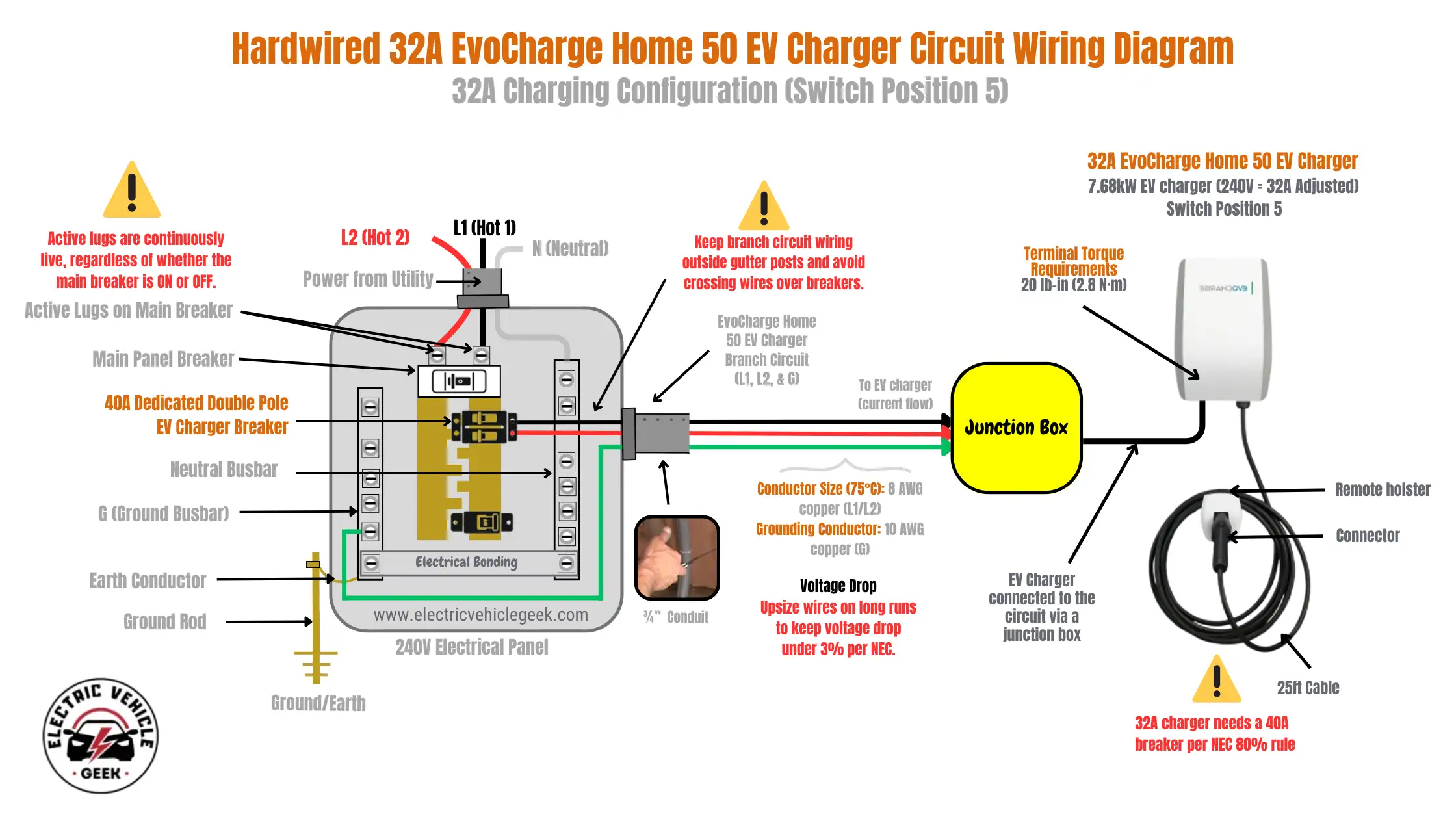

This diagram presents the circuit wiring configuration for a 32A hardwired EvoCharge Home 50 EV Charger.
EvoCharge Home 50 EV Charger 40A Charging Configuration (Switch Position 6)
This powerful 40A model delivers up to 9.6 kW, providing significantly faster charging times – ideal for daily drivers and high-capacity EV batteries.
Ideal for most modern EVs with larger batteries requiring shorter charging times.
- Breaker Rating: 50A
- Minimum Conductor Size (75°C): 8 AWG copper (L1/L2)
- Minimum Equipment Grounding Conductor: 10 AWG copper (G)
- Terminal Torque Requirements: 8 AWG: 20 lb-in (2.8 N·m)
Below is the electrical circuit wiring diagram for a 40A hardwired EvoCharge Home 50 EV Charger.
EvoCharge Home 50 EV Charger 48A Charging Configuration (Switch Position 7)
Offering a robust 11.5 kW at 240 volts, the 48A charger is designed for performance-oriented EVs and drivers seeking reduced charge cycles.
Recommended for users who want to maximize the EvoCharge Home 50’s output under NEC guidelines.
- Breaker Rating: 60A
- Minimum Conductor Size (75°C): 6 AWG copper (L1/L2)
- Minimum Equipment Grounding Conductor: 10 AWG copper (G)
- Terminal Torque Requirements: 6–4 AWG: 35 lb-in (4.0 N·m)
Shown below is the circuit wiring layout for a 48A hardwired EvoCharge Home 50 EV Charger installation.
EvoCharge Home 50 EV Charger 50A Charging Configuration (Switch Position 8)
At the top end of residential charging, this 50A EV charger delivers 12 kW of power, maximizing speed for vehicles that support high-amperage charging.
The highest selectable output of the EvoCharge Home 50 EV Charger, offering top-tier fast charging performance for larger EVs or future-proofing.
Note: Before installing a 50A high-power charger, we recommend checking if your EV has an onboard AC charger that is limited to 11.5 kW – such as the Rivian R1S, under such a scenario we recommend installing the 48A Charging Configuration (Switch Position 7), or purchasing a compatible 48 Amp EV charger.
- Breaker Rating: 70A
- Minimum Conductor Size (75°C): 4 AWG copper (L1/L2)
- Minimum Equipment Grounding Conductor: 8 AWG copper (G)
- Terminal Torque Requirements: 6–4 AWG: 35 lb-in (4.0 N·m)

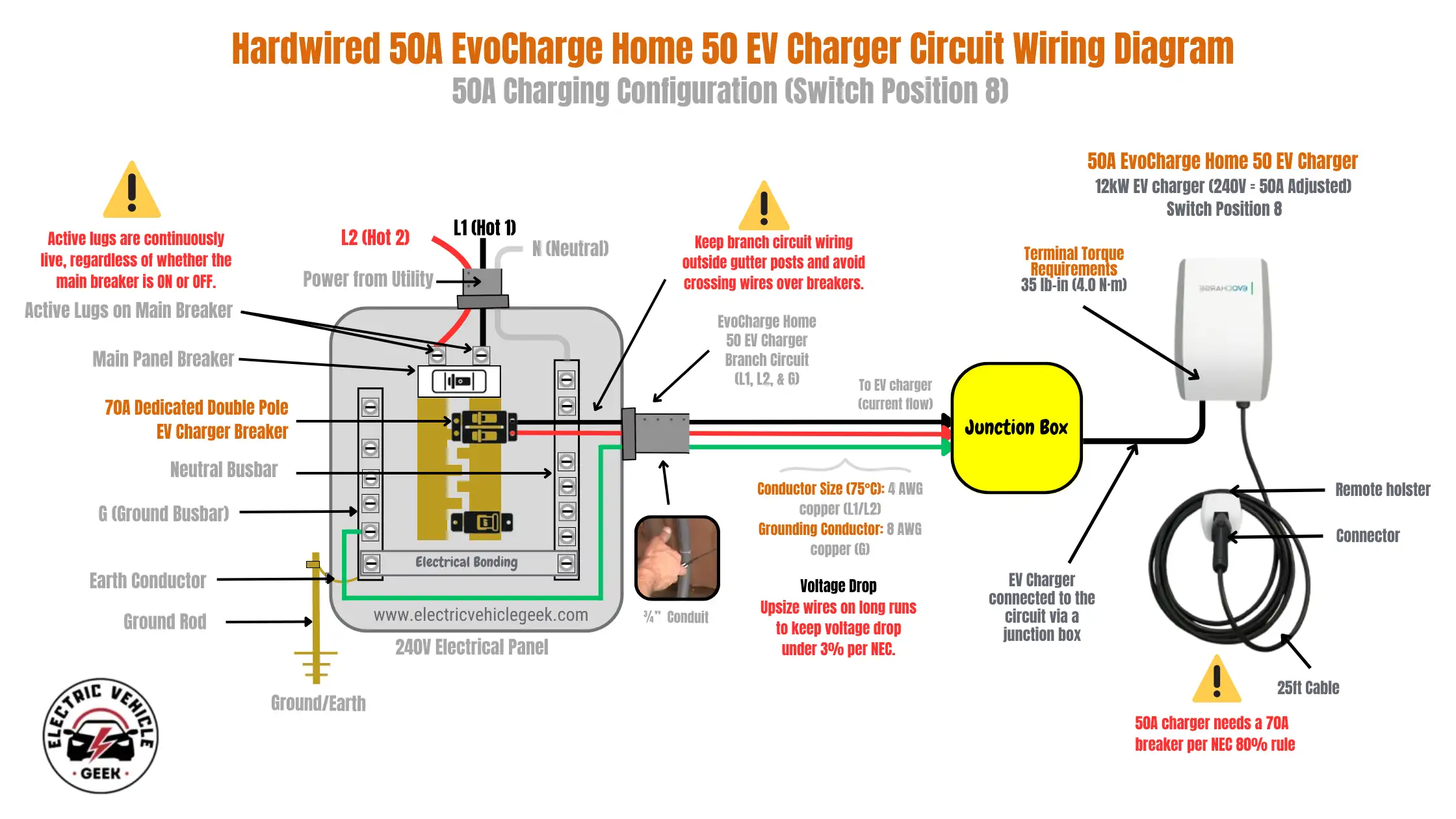

The diagram below illustrates the circuit wiring for a 50A hardwired EvoCharge Home 50 EV Charger setup.
