Connecticut Electric UBIF015N 15 Amp Circuit Breaker for Level 1 EV Charging

Add to compare
9.1
Expert ScoreRead review

The Connecticut Electric UBIF015N 15 Amp Circuit Breaker for Level 1 EV Charging is a new, ETL-listed replacement for aging Stab-Lok breakers in Federal Pacific panels. It supports 12A continuous loads from 120V EV chargers, ensuring reliable, code-compliant performance for simple home charging setups in older electrical systems.

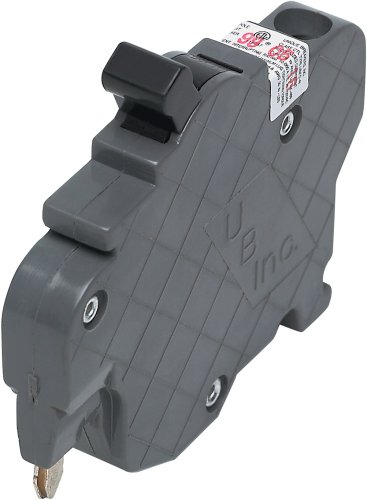

The Connecticut Electric UBIF015N is a 15 Amp, 1-pole, thin-series Stab-Lok circuit breaker I recommend when installing 120V Level 1 EV chargers – especially in older homes with original Federal Pacific Electric load centers.

As an EV charger installer, I frequently run into legacy Stab-Lok panels in homes where homeowners want a simple, low-cost 12 A Level 1 EV charging setup. Level 1 chargers pulling 12 amps of continuous load at 120V (around 2.8kW) need a clean, safe, and properly rated breaker, and that’s exactly where the UBIF015N shines. Unlike refurbished options or off-brand clones, this breaker is manufactured brand new by Connecticut Electric, not reconditioned or salvaged, and it’s ETL listed to UL Standard 489 for use in both the US and Canada.

We tested the UBIF015N on a dedicated 15A circuit feeding a 12A Lectron Level 1 J1772 EV Charger, rated for 12 amps of continuous EV charging load. The 12 A EV charger delivered a consistent 2.8kW load without any voltage drops, breaker chatter, 15 A dedicated circuit breaker tripping, or signs of excessive heat over several charging cycles (40-50+ hours from empty to 80%, and 5-6 hours for a PHEV). In a panel known for unreliable contact and aging busbars, that kind of steady performance makes a big difference. During installation, the breaker fitted firmly into the Stab-Lok slot with no wiggle or contact issues, which is often a challenge with aftermarket replacements in these older panels.

The breaker’s plug-in design made the installation straightforward – even for a tight retrofit. No need to modify, upgrade the panel, or force a fit making it a good circuit breaker for 100 A panels or homes with lots of loads and only 15 A to spare for an EV charger. The circuit breaker locked into place and accepted the 14 AWG copper wiring cleanly. Given its 10,000 AIC rating, I felt confident running it in a circuit dedicated to 12A level 1 EV charging, where safety and reliability matter more than ever considering the extended EV trickle charging sessions of 40+ hours with a 12A level 1 EV charger.

Because the UBIF015N is a renewal-type breaker, it’s specifically designed to replace original Stab-Lok NC115 thin-series breakers in Federal Pacific panels. That compatibility eliminates guesswork and helps ensure code compliance, especially when working under NEC requirements for EV charging circuits in garages and other residential spaces.

I wired this breaker to support a NEMA 5-15R outlet for the 12 A plug-in Level 1 EV charger (12A Lectron Level 1 J1772 EV Charger). The circuit was installed using 14 AWG solid copper THHN wire in a ½-inch conduit, with grounding run to the panel’s bonded ground/neutral busbar as shown in the wiring diagram below. The entire circuit components including the circuit breaker stayed cool and stable through several test runs which included 40+ trickle charging sessions in a warm environment.

Here’s how I wired the 15A EV charging circuit using the Connecticut Electric UBIF015N circuit breaker for a 12A Level 1 EV charger installation:

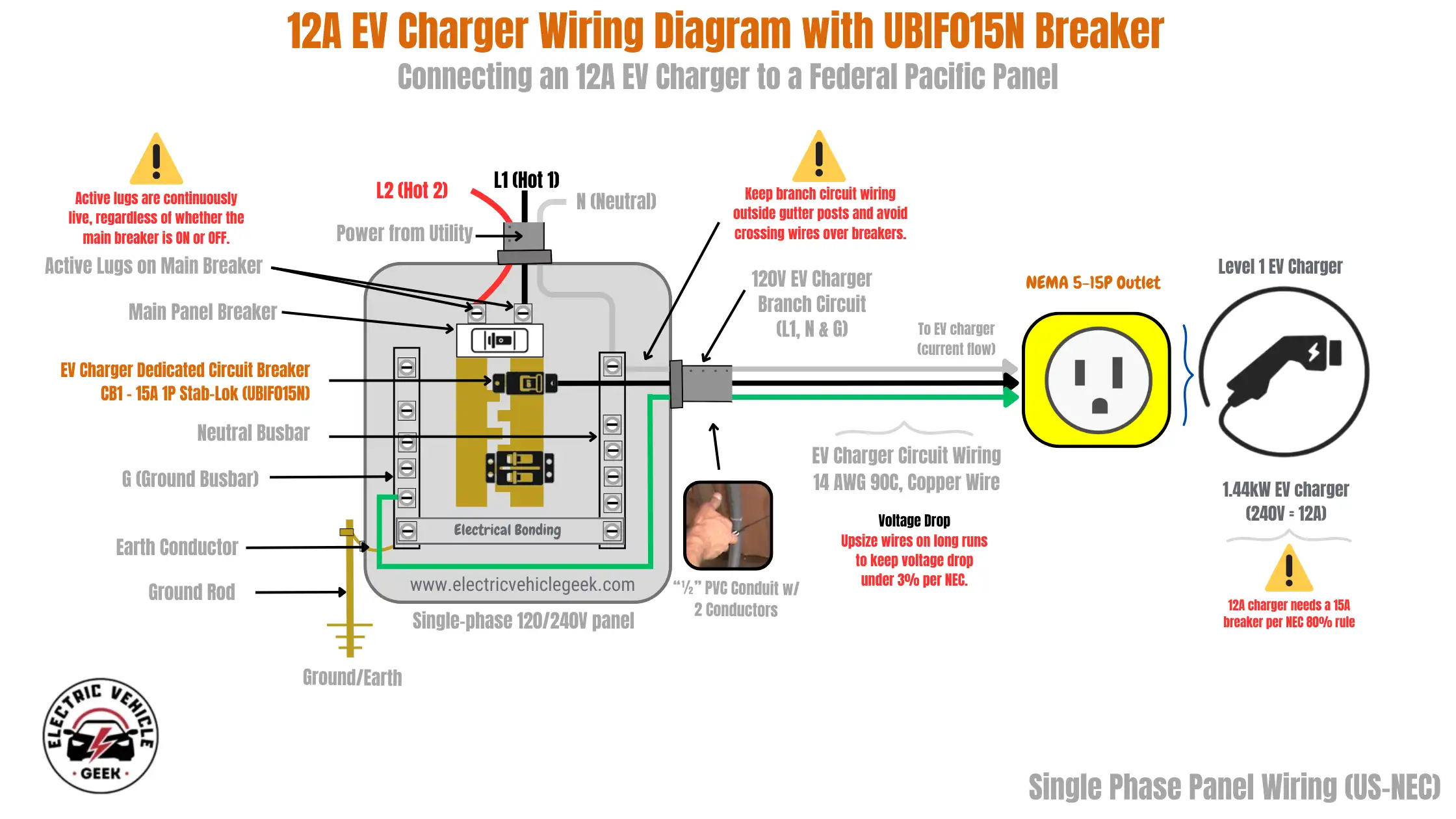

The electrical wiring diagram titled "12A EV Charger Wiring Diagram with UBIF015N Breaker" illustrates how a 12-amp Level 1 EV charger connects to a Federal Pacific electrical panel under US National Electrical Code (NEC) standards. Power enters the single-phase 120/240V panel through utility lines: L1 (Black), L2 (Red), and N (White), which connect to the main lugs. A safety warning notes that these lugs are always live. Inside the panel, you see the main breaker, a neutral busbar, a ground busbar, and bonding between the neutral and ground busbars. These components form the core of the main panel layout. A dedicated 15A EV charger circuit is wired through a UBIF015N breaker, labeled as CB1 – 15A 1P Stab-Lok. A note highlights that a 12A charger requires a 15A breaker to comply with NEC’s 80% rule for continuous loads. The 120V branch circuit runs from the breaker with a black hot wire (L1), a white neutral wire (N) from the neutral busbar, and a green ground wire (G) from the ground busbar. All three are 14 AWG copper wires rated for 90°C and run through 1/2" PVC conduit to the charger location. The grounding system includes a conductor that connects the ground busbar to an external ground rod driven into the earth, shown with a ground/earth symbol. The circuit ends at a yellow NEMA 5-15P outlet, where a Level 1 EV charger—delivering 1.44kW at 120V—is plugged in. The charger is represented with a plug icon. Additional diagram notes emphasize neat wire routing away from gutter posts and avoiding wire crossover above breakers. There's also a reminder to upsize conductors on long runs to maintain voltage drop below 3%, per NEC guidelines.

9.1Expert Score
For 120V Level 1 EV charging circuits using 12A EV chargers like the Lectron J1772, the UBIF015N installs easily, fits securely, and performs without fault. It’s the go-to choice when working with thin-series Stab-Lok panels and 15A EV loads in residential settings.
Features
9
Real World Usage
9.5
Materials
9
Durability
9
Craftsmanship
9
Design
9
Monetary Value
9
Product Value
9
Brand Reputation
8.5
Expert Valuation
9.5
PROS
  • Newly manufactured (not refurbished)
  • ETL listed to UL 489
  • Fits securely in Stab-Lok slots
  • No tripping or overheating at 12A continuous load
  • Easy plug-in installation
  • Supports 14 AWG copper wiring
CONS
  • Higher cost than standard breakers
  • Only compatible with NC115 thin series panels
  • Stab-Lok panels require careful inspection
