Connecticut Electric UBIF240N 40 Amp Circuit Breaker for Level 2 EV Charging

Add to compare
9
Expert ScoreRead review

The Connecticut Electric UBIF240N 40A two-pole circuit breaker is ETL-listed for safe, code-compliant replacement in Federal Pacific Stab-Lok NA panels—ideal for protecting 240V 32A Level 2 EV chargers.

The Connecticut Electric UBIF240N 40 Amp, 120/240 VAC, 2-Pole circuit breaker directly replaces Federal Pacific Stab-Lok panels that accept NA-style (thick) breakers. It’s an ideal option for homeowners or electricians looking to safely replace older breakers in their load centers to install 32A EV chargers – or amperage-adjusted Level 2 EV chargers to 32A. With its ETL Listing to UL Standard 489, this breaker is certified for use in both the U.S. and Canada, ensuring it meets the highest safety standards.

As an EV charger installer, I’ve worked on numerous retrofit EV charger installation projects involving Federal Pacific panels. The biggest challenge with these panels is finding reliable and code-compliant breakers that fit properly. The Connecticut Electric UBIF240N solves this problem, fitting seamlessly into Federal Pacific Stab-Lok panels that accept NA-style (thick) breakers without requiring any modifications or panel upgrades. Its plug-in design provides a solid connection, ensuring no issues with EV charger voltage drops or EV charging electrical faults.

With a 10,000 AIC interrupting capacity, the Connecticut Electric UBIF240N is built to handle fault conditions, offering robust protection for the EV charging circuit. Its 40 Amp rating is ideal for supporting continuous 240V 32A Level 2 EV chargers delivering 7.7 kW of power, where NEC 80% rules require a 40A breaker to safely supply a 32A continuous load.

We tested the circuit breaker on a JuiceBox 32 Amp EV Charger connected to the Federal Pacific Stab-Lok panel.

Add to compare
JuiceBox 32 Smart Electric Vehicle (EV) Charging Station with WiFi - 32 amp Level 2 EVSE, 25-Foot Cable, UL and Energy Star Certified, Indoor/Outdoor Use (NEMA 14-50 Plug, Gray)…
Deal
The JuiceBox 32 Smart EV Charging Station offers 32 amps of Level 2 charging with a 25-foot cable and NEMA 14-50 plug. UL and Energy Star certified, it provides efficient, reliable charging for indoor or outdoor use. WiFi connectivity enables smart features, ensuring optimal performance and energy management.

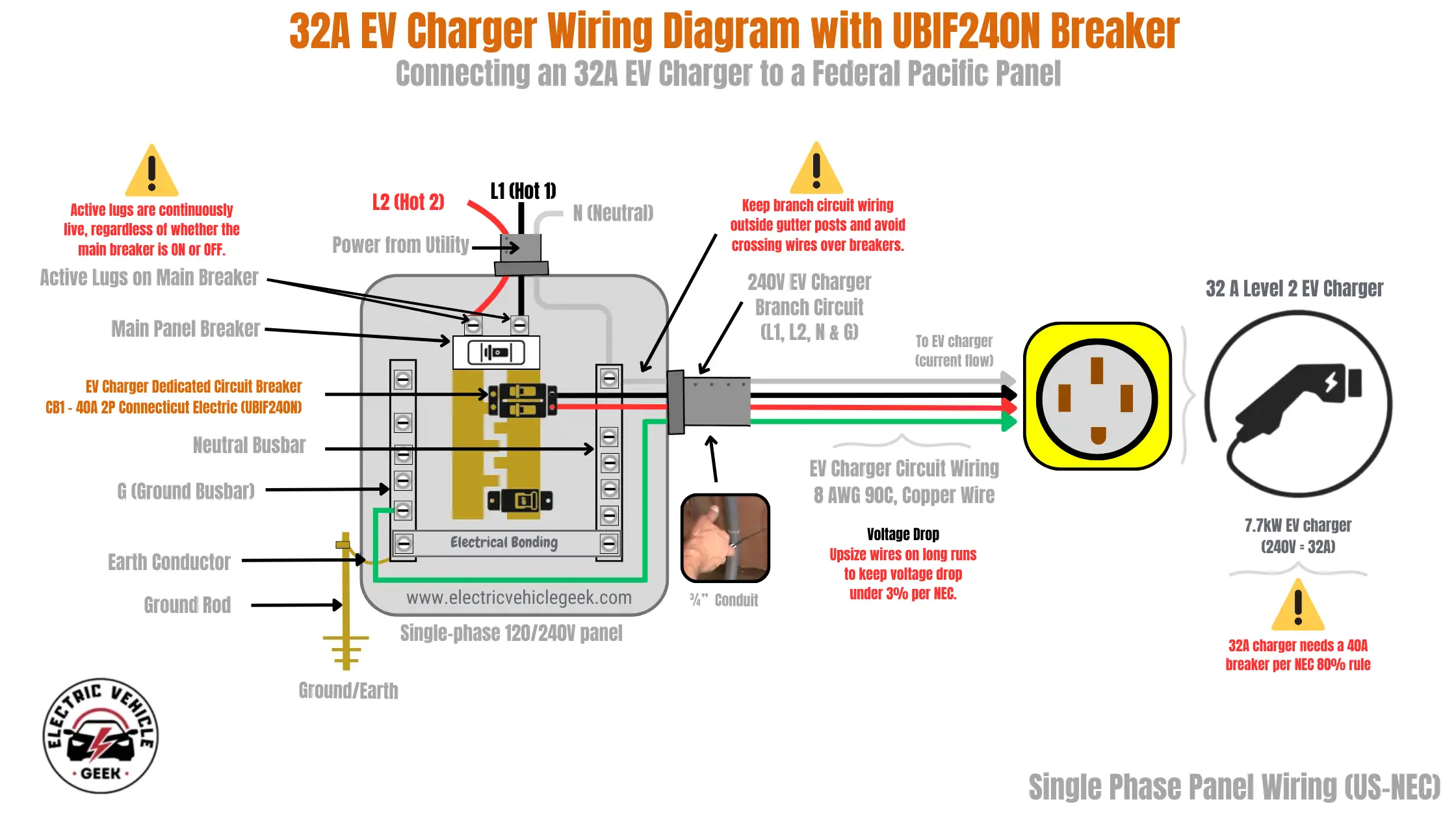

The JuiceBox 32 Amp EV charger circuit was plugged into a NEMA 14-50 outlet which was wired using 8 AWG copper THHN in ¾-inch PVC conduit, and the outlet was grounded to the panel’s bonded neutral/ground busbar as shown in the wiring diagram below:The electrical wiring diagram titled "32A EV Charger Wiring Diagram with UBIF240N Breaker" illustrates how to connect a 32A Level 2 EV charger to a Federal Pacific electrical panel, adhering to US National Electrical Code (NEC) standards. The diagram shows a single-phase 120/240V panel where power enters via L1 (Hot 1 - Black), L2 (Hot 2 - Red), and N (Neutral - White) wires, connecting to the main lugs. A warning indicates that these lugs are always live. Inside the panel, you'll find the main breaker, neutral busbar, ground busbar (G), and an electrical bond connecting the neutral and ground busbars. A dedicated 40A 2-Pole breaker (CB1 - 40A 2P Connecticut Electric UBIF240N) is used for the EV charger circuit. A note explains that according to the NEC 80% rule for continuous loads, a 32A charger requires a 40A breaker. From this breaker, L1 (Black) and L2 (Red) wires, along with a green ground wire (G) from the ground busbar, form the 240V EV Charger Branch Circuit using 8 AWG 90°C copper wire, running through ¾" conduit to the charger. The grounding system includes an earth conductor that connects the ground busbar to an external ground rod. The circuit terminates at a 4-prong yellow receptacle, similar to a NEMA 14-50 outlet, where a 32A Level 2 EV charger (providing 7.7kW at 240V) plugs in. Additional warnings in the diagram advise keeping wiring away from gutter posts and avoiding crossing wires over breakers. Another note suggests upsizing wires on long runs to limit voltage drop to under 3% per NEC. The diagram also features the "Electric Vehicle Geek" logo and is labeled "Single Phase Panel Wiring (US-NEC)".

The Connecticut Electric UBIF240N breaker handled the 32A EV charger continuously load effortlessly, showing no signs of dedicated EV charger circuit breaker tripping, overheating, or voltage instability, even during extended charging sessions.

This setup is an excellent example of how to safely and effectively integrate a 240V 32A Level 2 EV charger into an older Federal Pacific load center without requiring a costly panel replacement. The NA-style thick body fits securely into the Federal Pacific Stab-Lok panel, and the installation process is quick and straightforward.

If you’re retrofitting an older Federal Pacific panel that accepts NA-style (thick) breakers – or replacing a worn-out breaker for a 32A EV charger – the Connecticut Electric UBIF240N 40A circuit breaker is a dependable, code-compliant solution that won’t disappoint.

Recommended 32A Level 2 EV Chargers for UBIF240N Breaker

Here’s a list of top-rated 32A Level 2 EV chargers that pair well with the Connecticut Electric UBIF240N breaker, ensuring safe, efficient, and NEC-compliant charging at 240V.

Add to compare
Battery Tender eCharge 32 AMP EV Charger - Level 1+2 Portable Electric Vehicle EV Car Charger - 022-3017-DL-WH
Deal
The Battery Tender eCharge 32 AMP EV Charger is a versatile Level 1+2 electric vehicle charger, compatible with 120V or 240V power sources. Offering 16A or 32A output, this portable EV charger is perfect for indoor and outdoor use, featuring multiple plug options like 5-15p, 5-20p, and NEMA 14-50R for flexible charging. Ideal for fast, reliable EV charging at home or on the go.
Add to compare
Anker Electric Vehicle Charger, 7.6KW Level 2 Portable Fast Charger with J1772 Connector and 25 ft Cable, NEMA 14-50 Plug, Scheduled Charging, Works with EV and Hybrid Vehicles, for Home and Outdoor
Deal
The Anker Electric Vehicle Charger is a 7.6 kW Level 2 portable fast charger featuring a J1772 connector and 25 ft cable. With a NEMA 14-50 plug and scheduled charging, it works with both EV and hybrid vehicles, offering reliable home and outdoor charging convenience with fast, efficient performance.
Add to compare
AIMILER Level 2 Electric Vehicle (EV) Charger(32Amp, 220V-240V, NEMA 14-50 Plug), 25ft Cable ETL Listed Portable Indoor/Outdoor EVSE SAE J1772 EV Car Charging Station w/Delay Timer, WiFi Enabled
Deal
The Aimiler 32 Amp Level 2 EV Charger delivers 220V-240V power with a NEMA 14-50 plug and a 25ft cable, offering versatile indoor/outdoor charging. ETL listed and WiFi-enabled, it features a delay timer for customized charging schedules. Compatible with SAE J1772 EVs, it ensures fast, efficient, and reliable performance.
Add to compare
JuiceBox 32 Smart Electric Vehicle (EV) Charging Station with WiFi - 32 amp Level 2 EVSE, 25-Foot Cable, UL and Energy Star Certified, Indoor/Outdoor Use (NEMA 14-50 Plug, Gray)…
Deal
The JuiceBox 32 Smart EV Charging Station offers 32 amps of Level 2 charging with a 25-foot cable and NEMA 14-50 plug. UL and Energy Star certified, it provides efficient, reliable charging for indoor or outdoor use. WiFi connectivity enables smart features, ensuring optimal performance and energy management.
Add to compare
EvoCharge iEVSE® Home 32 | Smart Level 2 EV Charger, WiFi Enabled Up to 32 Amps, 25 Foot Cable, 240V, UL Listed, NEMA 6-50 Plug, Indoor/Outdoor, Up to 25 Miles Per Hour Charged
Deal
The EvoCharge iEVSE® Home 32 Smart Level 2 EV Charger offers up to 32 Amps of 240V charging, delivering up to 25 miles of range per hour. With WiFi connectivity, a 25-foot cable, and a NEMA 6-50 plug, it’s UL-listed for safety and suitable for both indoor and outdoor installations.

You can also use this circuit breaker to install Level 2 EV chargers that can be adjusted to 32 amps, making it ideal for limited-capacity panels. 32A Adjusted Level 2 EV Chargers – Full List.

9Expert Score
For 240V 32A Level 2 EV chargers like the JuiceBox 32, the Connecticut Electric UBIF240N-New is a safe and reliable circuit breaker that ensures solid performance in Federal Pacific Stab-Lok panels. Tested under continuous load, it delivers stable power with full NEC compliance—making it a must-have for electricians and EV owners alike.
Features
9
Real World Usage
9
Materials
9
Durability
9
Craftsmanship
9
Design
9
Monetary Value
9
Product Value
8.5
Brand Reputation
8.5
Expert Valuation
9.5
PROS
  • New ETL-listed breaker compatible with Federal Pacific Stab-Lok NA panels
  • Supports 240V 32A Level 2 EV charger installation without panel upgrade
CONS
  • Only compatible with Federal Pacific NA-style Stab-Lok panels
