Grizzl-E Smart EV Charger Review
The Grizzl-E Smart Level 2 240V / 40A EV Charger is the best home charging solution, featuring a J1772 connector for universal compatibility. With its durable metal case, UL testing, Energy Star certification, and NEMA 14-50 compatibility, this indoor/outdoor charger delivers fast, efficient, and reliable charging for all electric vehicles.
We first encountered the Grizzle-E product line when searching for a reliable off-road EV charger. We bought the Grizzle-E classic for our Jeep 4xe, and we can attest to its rugged model, which can withstand even the most extreme conditions compared to other EV chargers. Whether you need an outdoor installation or a charger that can withstand the extreme environments of portable EV chargers, the Grizzle-E line of products is the best choice.

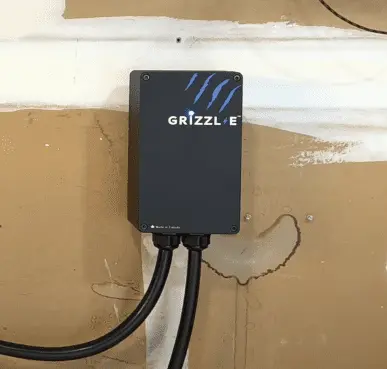

Grizzl-E Smart EV Charger
The Grizzl-E Smart EV Charger is an upgraded version of our popular Grizzl-E Classic. It retains the same reliable design but now offers advanced smart charging features. We loved the Classic for our rugged Jeep 4xe adventures and were thrilled to see the smart version available. While it’s not the top choice for those seeking a simple, no-frills charger, it’s an excellent option for homeowners looking for a feature-rich, affordable smart charging solution.
When the Grizzle-E came first to our hands, it was complicated to set up, and the mobile app at that time was the ChargeLab app which had lots of compatibility issues being a third-party app, now all that has changed and Grizzle-E listened to our complaints and released their mobile application the Grizzl-E Connect Application that allowed the Grizzle-E to improve the user experience allowing you to manage your Grizzle-E smart EV charging remotely.
The Grizzl-E Smart EV Charger offers flexible installation options, you can choose from a professional hardwire installation or a plug-in option that requires either a NEMA 6-50 or NEMA 14-50 outlet.
NEMA 14-50R Outlet Installation for Grizzl-E Smart EV Charger
To install a NEMA 14-50R outlet for the Grizzl-E Smart EV Charger, start by turning off the power at the main electrical panel. Install a 50-amp double-pole circuit breaker and connect 6 AWG feeder wires from the breaker to the outlet location. The NEMA 14-50R outlet will have four terminals: two for the hot wires (240V), one for neutral, and one for ground. Ensure each wire is properly stripped and securely fastened to its respective terminal in the outlet. After wiring, mount the outlet securely to the wall, and check all connections for tightness. Use proper strain relief to avoid any tension on the wires. Once installed, verify that the outlet is functioning correctly by testing it with your Grizzl-E Smart EV Charger, and make sure to follow local electrical codes and safety regulations throughout the installation process.
NEMA 14-50R Outlet Installation for Grizzl-E Smart EV Charger
Compatible NEMA 14-50 Outlets
These NEMA 14-50 outlets are fully compatible with the Grizzl-E Smart EV Charger, supporting a maximum current output of 40 amps on a 50A circuit breaker for continuous charging without risk of overheating or fire. These outlets can deliver 28-30 miles per hour at 40A of power at optimal operating temperatures ranging from -30°C to +50°C (-22°F to 122°F), making them ideal for reliable Level 2 EV charging with the Grizzl-E Smart EV Charger. Designed for durability, they can withstand frequent plugging and unplugging and are compatible with 6 AWG wiring, ensuring safe and efficient performance over time.
Grizzl-E Smart EV Charger Installation with NEMA 6-50 Outlet
The Grizzl-E Smart EV Charger offers customizable charging based on circuit breaker capacity. Follow the guidelines below for installation, wiring, and performance. Each section includes the charge rate and a diagram for reference.
40A Output Grizzl-E Smart EV Charger (50A Circuit Breaker)
The diagram below illustrates the correct wiring configuration for a 40A Grizzl-E Smart EV Charger with a NEMA 6-50R outlet. It requires a 50-amp circuit breaker and 6 AWG wiring to ensure safe and efficient operation. A conduit with an inner diameter of 3/4″ to 1″ is recommended for optimal wire protection. This setup supports a 9.6 kW power output and provides a charge rate of 28–30 miles of range per hour.
32A Grizzl-E Smart EV Charger (40A Circuit Breaker)
The diagram below demonstrates the proper wiring setup for a 32A Grizzl-E Smart EV Charger with a NEMA 6-50R outlet. It requires a 40-amp circuit breaker and 8 AWG wiring to ensure safe handling of the current. A conduit with an inner diameter between 3/4″ and 1″ is recommended for optimal wire protection. This configuration supports a 7.6 kW power output and delivers a charge rate of 22–25 miles of range per hour.
24A Grizzl-E Smart EV Charger (30A Circuit Breaker)
The diagram below outlines the installation of a 24A Grizzl-E Smart EV Charger using a NEMA 6-50R outlet with a 30-amp circuit breaker. It requires 10 AWG wiring, and the conduit should have an inner diameter between 1/2″ and 1″ for proper protection. This configuration supports a 5.7 kW power rating and delivers a charge rate of 15–18 miles of range per hour.
16A Grizzl-E Smart EV Charger (20A Circuit Breaker)
The diagram below illustrates the installation of a 16A Grizzl-E Smart EV Charger using a NEMA 6-50R outlet with a 20-amp circuit breaker. It requires 12 AWG wiring, and the conduit should have an inner diameter between 1/2″ and 1″ for optimal protection. This configuration supports a 3.8 kW power rating and delivers a charge rate of 10–12 miles of range per hour.
Recommended NEMA 6-50 Outlets for Grizzl-E Smart EV Charger
For optimal performance and safety, it’s crucial to use NEMA 6-50 outlets specifically designed for the Grizzl-E Smart EV Charger. These outlets are NEC-compliant, supporting adjustable amperage (16A to 40A) for a versatile charging experience. Depending on the circuit breaker, they can handle the following maximum current outputs: 40A with a 50A circuit breaker, 32A with a 40A circuit breaker, 24A with a 30A circuit breaker, and 16A with a 20A circuit breaker.
These outlets are compatible with 6 AWG, 8 AWG, 10 AWG, and 12 AWG wiring, ensuring efficient and reliable charging while minimizing the risk of overheating and maintaining smooth operation.
Grizzl-E Smart EV Charger Compatible Outlet Covers
Improve safety and energy efficiency with outlet covers for your Grizzl-E Smart EV Charger. These covers protect against electrical hazards, prevent tampering, and seal unused outlets to reduce energy waste.
